Complete Guide to Setting Up an Efficient Grinding Mill Production Line

Establishing an efficient grinding mill production line requires careful planning, selection of appropriate equipment, and optimization of operational parameters. This guide provides a comprehensive overview of the key considerations for setting up a high-performance grinding system, with insights from ZENITH’s 30+ years of expertise in mining machinery manufacturing.

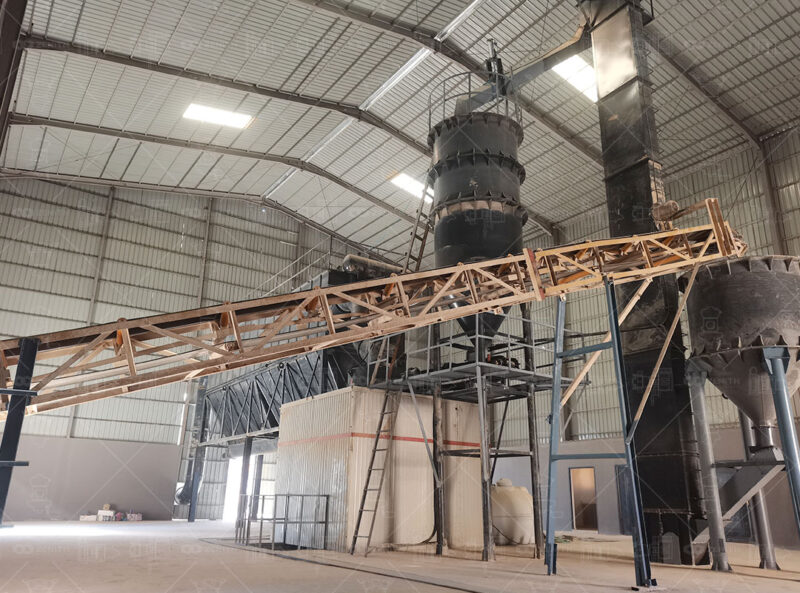

1. Production Line Configuration

1.1 Core Components

A complete grinding production line typically consists of:

  • Primary crushing equipment
  • Material conveying system
  • Grinding mill (core component)
  • Classification system
  • Dust collection equipment
  • Automation control system

1.2 Layout Considerations

Proper plant layout should consider:

  • Material flow optimization
  • Equipment maintenance access
  • Dust control measures
  • Energy distribution efficiency

2. Equipment Selection

2.1 Grinding Mill Types

Selecting the right mill depends on your material characteristics and production requirements:

  • For ultrafine grinding (45-5μm): Consider our XZM Ultrafine Mill series with precision classification technology
  • For medium-fine grinding (600-45μm): MTW Series Trapezium Mill offers excellent energy efficiency
  • For large-scale production: LM Series Vertical Roller Mill provides high capacity with low operating costs

2.2 Featured Product: XZM Ultrafine Mill

Our XZM Ultrafine Mill stands out with:

  • Output fineness: 325-2500 mesh (D97≤5μm)
  • Capacity: 0.5-25 ton/h (model dependent)
  • 30% energy saving compared to conventional mills
  • Intelligent control system for automatic particle size adjustment

2.3 Featured Product: MTW Series Trapezium Mill

For medium-fine grinding applications, the MTW Series offers:

  • Output range: 30-325 mesh (0.038mm)
  • Capacity: 3-45 ton/h
  • 98% efficient gear transmission system
  • 30% lower maintenance costs with wear-resistant components

3. Process Optimization

3.1 Material Preparation

Proper feed preparation is crucial:

  • Control feed size within mill specifications
  • Ensure consistent moisture content
  • Remove metal contaminants

3.2 System Integration

Optimize the complete system:

  • Match classifier speed to desired product fineness
  • Balance air flow rates throughout the system
  • Implement proper dust collection

4. Maintenance & Operation

4.1 Routine Maintenance

Extend equipment life with:

  • Scheduled inspection of wear parts
  • Proper lubrication procedures
  • Monitoring of vibration levels

4.2 Operational Best Practices

Maximize efficiency through:

  • Gradual mill startup procedures
  • Consistent feed rate control
  • Regular product quality monitoring

5. ZENITH’s Technical Support

With our global service network covering 170+ countries, ZENITH provides:

  • Professional installation guidance
  • Operator training programs
  • 24/7 technical support
  • Genuine spare parts supply

Setting up an efficient grinding production line requires careful consideration of material characteristics, proper equipment selection, and systematic process optimization. ZENITH’s range of grinding mills, including our advanced XZM Ultrafine Mill and MTW Series Trapezium Mill, combined with our comprehensive technical support, ensures you achieve optimal production performance.
