Can Raymond Mill Process Metallic Ores Efficiently?

Introduction

The processing of metallic ores demands robust, efficient, and precise grinding equipment to achieve the desired fineness for downstream applications such as mineral extraction, metallurgy, and industrial manufacturing. Raymond mills, a type of roller mill, have been widely used in various industries for decades. However, the question arises: can they handle metallic ores efficiently? This article delves into the capabilities of Raymond mills for metallic ore processing, highlighting technological advancements and introducing superior alternatives from our product lineup.

Understanding Raymond Mill Technology

Traditional Raymond mills operate on the principle of centrifugal force-driven grinding rollers that crush materials against a stationary ring. They are known for their simplicity and reliability in processing non-metallic minerals like limestone, calcite, and barite. However, metallic ores often possess higher hardness, abrasiveness, and density, which can challenge conventional Raymond mills.

Key limitations include:

• Wear and Tear: Metallic ores, such as iron, copper, or gold ores, cause accelerated wear on grinding components like rollers and rings.
• Energy Efficiency: Higher energy consumption due to the hardness of metallic ores.
• Fineness Control: Limited ability to achieve ultra-fine grinding (below 325 mesh) required for some metallic ore beneficiation processes.

Despite these challenges, modern iterations of Raymond-style mills have incorporated improvements in materials and design to better handle metallic ores.

Advanced Solutions for Metallic Ore Grinding

To address the inefficiencies of traditional Raymond mills, our company has developed advanced grinding technologies that offer superior performance, durability, and precision for metallic ore processing. Two standout products are the SCM Ultrafine Mill and the MTW Series Trapezium Mill.

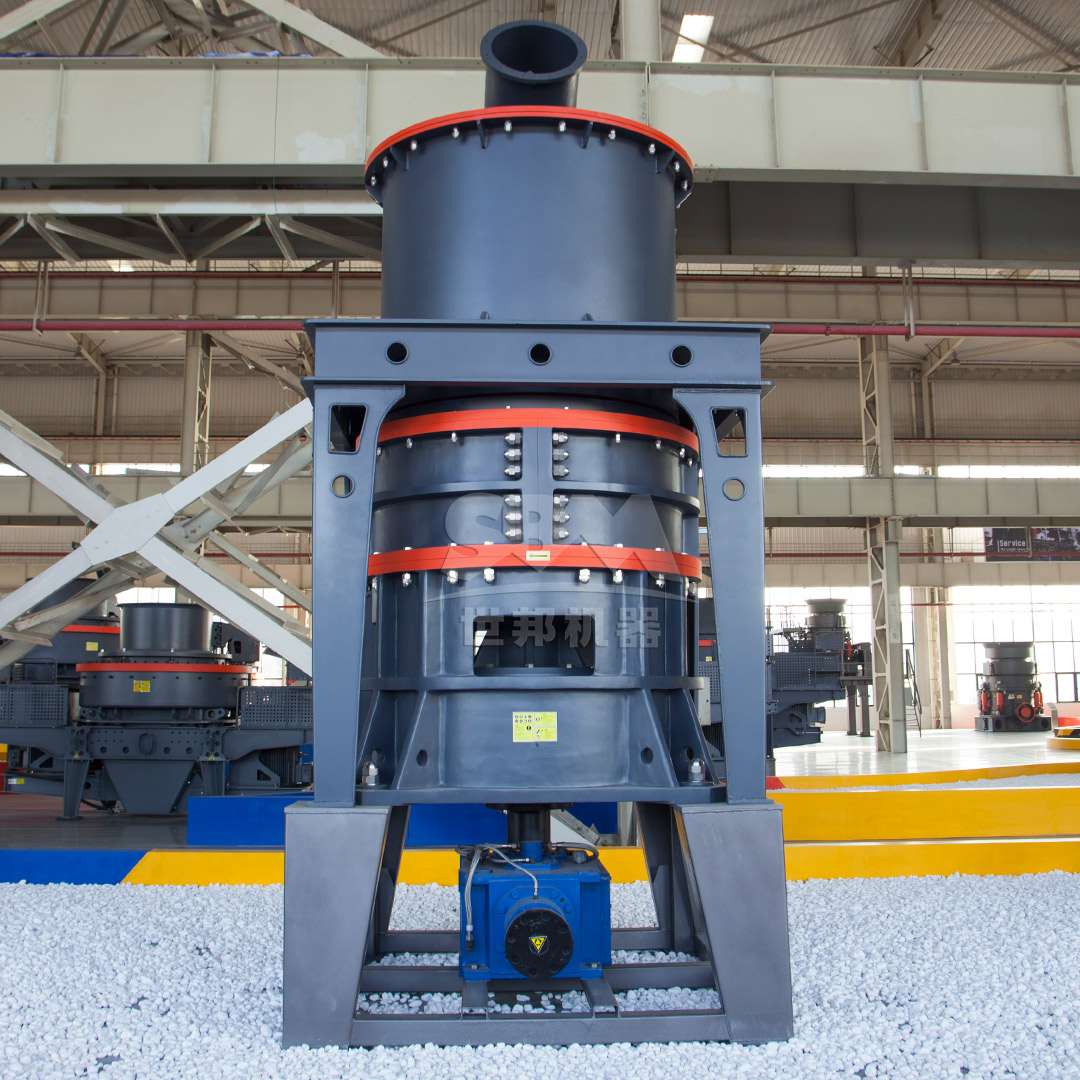

SCM Ultrafine Mill: Precision for Fine Grinding

The SCM Ultrafine Mill is engineered to achieve exceptional fineness and high efficiency, making it ideal for processing metallic ores that require ultra-fine powders for enhanced mineral liberation or industrial applications.

Key Features:

• High Efficiency & Energy Savings: With twice the capacity of jet mills and 30% lower energy consumption, the SCM mill reduces operational costs while maintaining high output.
• Precision Classification: Equipped with a vertical turbine classifier, it ensures accurate particle size distribution without coarse powder contamination.
• Durable Design: Special material rollers and grinding rings extend service life significantly, even when processing abrasive metallic ores.
• Eco-Friendly Operation: Pulse dust collection exceeds international standards, and noise levels are kept below 75dB.

Technical Specifications:

• Input Size: ≤20mm
• Output Fineness: 325-2500 mesh (D97 ≤5μm)
• Capacity: 0.5-25 ton/h (model-dependent)

For metallic ores like zinc or lead concentrates that require ultra-fine grinding for smelting or chemical processing, the SCM Ultrafine Mill provides unmatched efficiency and product quality.

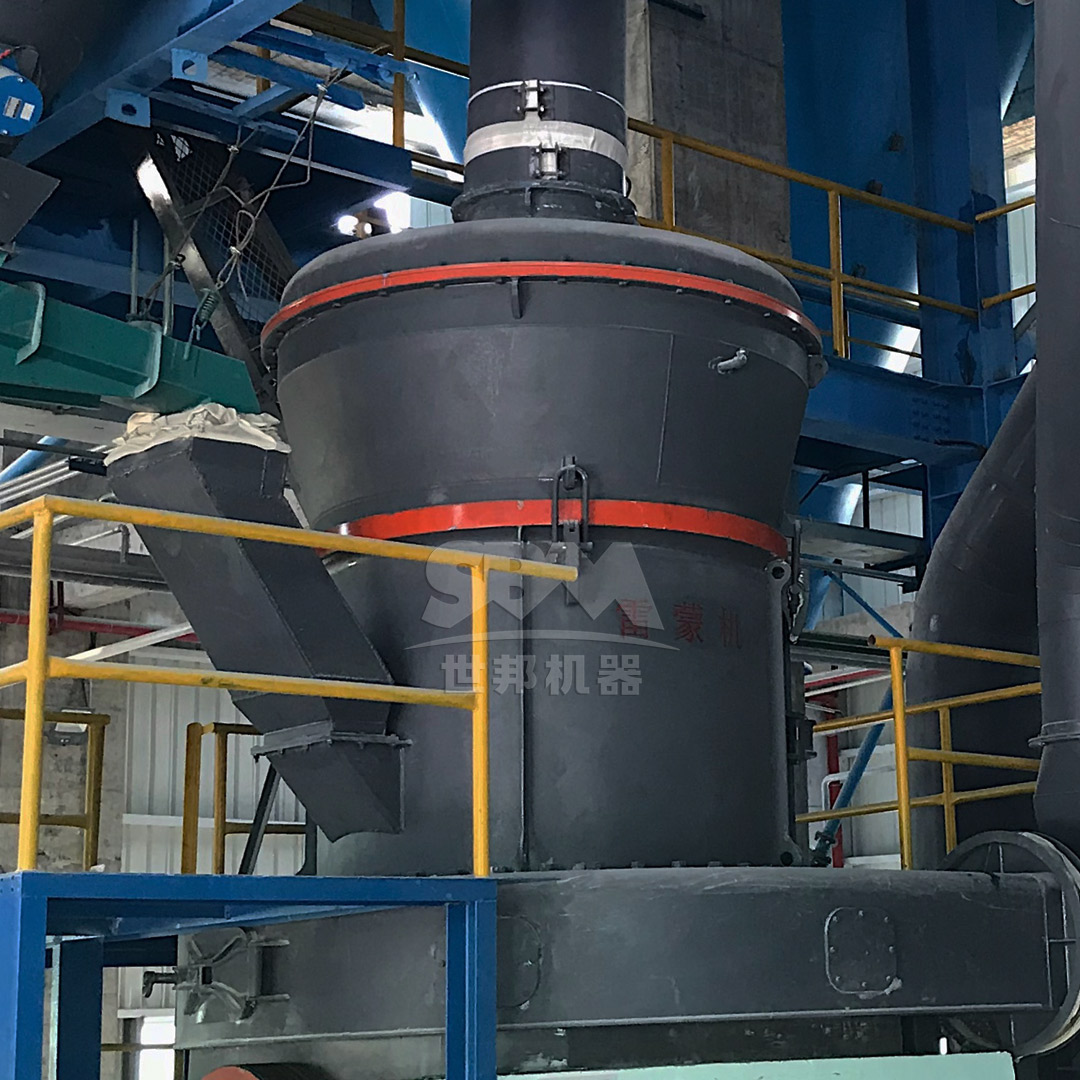

MTW Series Trapezium Mill: Robustness for Medium-Fine Grinding

The MTW Series Trapezium Mill is designed for heavy-duty applications, offering high capacity and reliability for metallic ores that need grinding to medium fineness (30-325 mesh).

Key Features:

• Anti-Wear Shovel Design: Combined shovel blades reduce maintenance costs and extend roller life.
• Optimized Airflow:
  Curved air channel minimizes energy loss and improves transmission efficiency.
• Efficient Transmission: Cone gear integral transmission achieves 98% efficiency, saving space and installation costs.
• Durable蜗壳结构: Wear-resistant蜗壳 with no-flow resistance design enhances air classification efficiency.

Technical Specifications:

• Input Size: ≤50mm
• Output Fineness: 30-325 mesh (up to 0.038mm)
• Capacity: 3-45 ton/h (model-dependent)

This mill is particularly effective for ores like iron ore or bauxite, where consistent granularity and high throughput are critical for subsequent magnetic separation or leaching processes.

Case Study: Application in Metallic Ore Processing

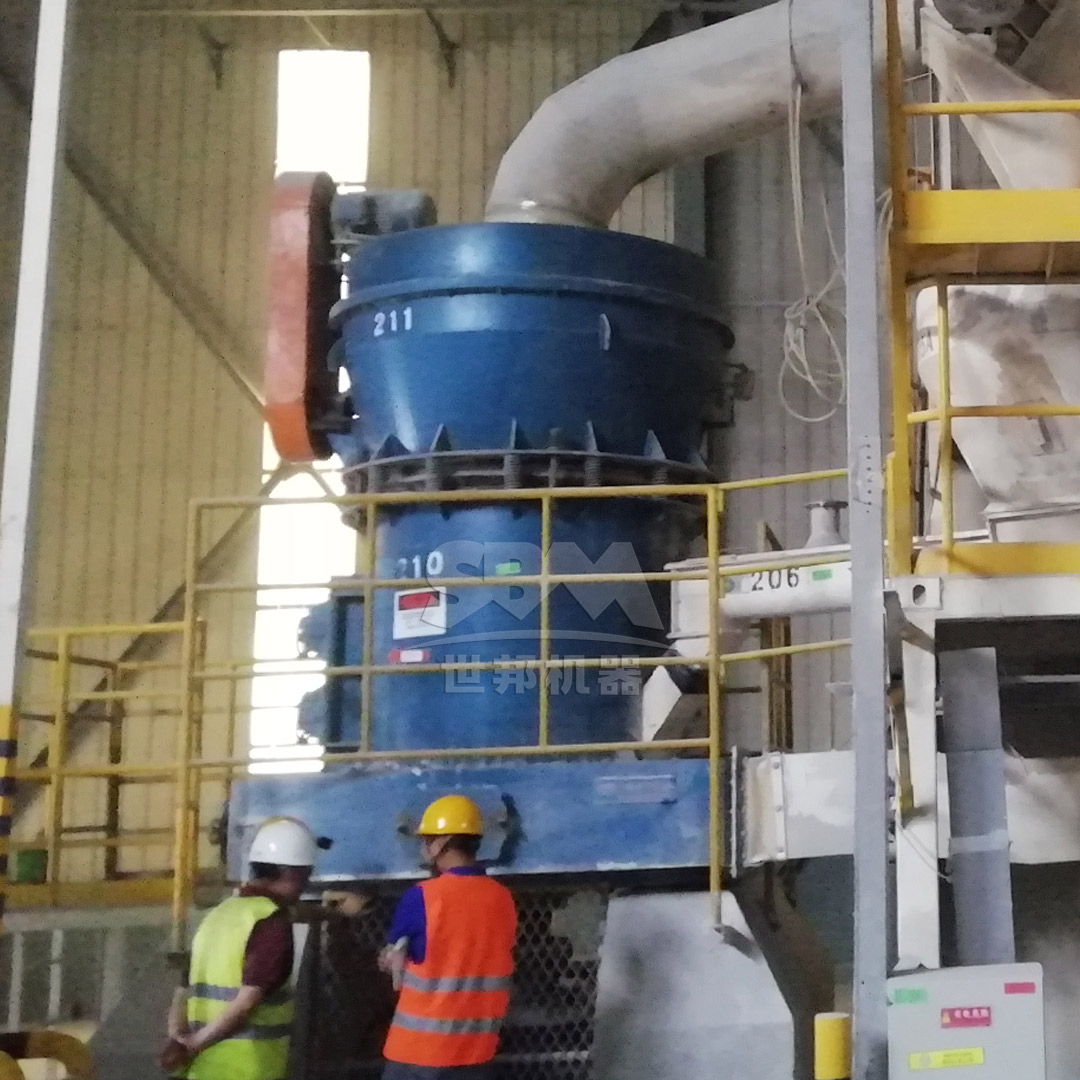

In a recent project, a mining company utilized our MTW215G model (capacity: 15-45 ton/h) to grind copper ore to 200 mesh for flotation. The results demonstrated:

• 30% reduction in energy consumption compared to traditional ball mills.
• Minimal wear due to the anti-abrasion materials used in grinding rollers and rings.
• Consistent product fineness, improving flotation recovery rates by 15%.

Conclusion

While traditional Raymond mills can process metallic ores, their efficiency is often limited by wear, energy consumption, and fineness constraints. Modern solutions like the SCM Ultrafine Mill and MTW Series Trapezium Mill from our company overcome these challenges through innovative design, durable materials, and advanced classification systems. These mills not only enhance grinding efficiency but also reduce operational costs and environmental impact, making them ideal choices for metallic ore processing. For operations seeking to optimize their grinding circuit, we recommend evaluating these models based on your specific ore characteristics and fineness requirements.
