Can Ground Granulated Blast Furnace Slag (GGBS) Be Used in Concrete Piles? Feasibility and Benefits
Introduction
Ground Granulated Blast Furnace Slag (GGBS) is a by-product of the iron-making industry that has gained significant traction as a supplementary cementitious material (SCM) in concrete production. Its use in concrete piles, which are critical structural elements for deep foundations, offers numerous technical, economic, and environmental advantages. This article explores the feasibility of incorporating GGBS into concrete piles, highlighting the benefits and addressing key considerations for optimal performance.
What is GGBS?
GGBS is obtained by quenching molten iron slag from blast furnaces in water or steam, followed by grinding to a fine powder. The granulation process produces glassy granules that, when finely ground, exhibit latent hydraulic properties. This means GGBS can react with water and calcium hydroxide (a by-product of Portland cement hydration) to form cementitious compounds, enhancing the strength and durability of concrete.
Feasibility of Using GGBS in Concrete Piles
1. Chemical and Physical Properties
GGBS particles are typically finer than ordinary Portland cement (OPC), which contributes to improved particle packing and reduced permeability in concrete. The chemical composition of GGBS, rich in calcium, silicon, and aluminum oxides, enables pozzolanic and hydraulic reactions. When used in concrete piles, these properties translate to enhanced long-term strength and reduced heat of hydration, mitigating the risk of thermal cracking—a critical factor for large-volume pours like piles.
2. Mix Design and Compatibility
GGBS can replace 30–70% of OPC in concrete mixes for piles, depending on project requirements. The mix design must account for the slower early strength development of GGBS-blended concrete, which may require adjustments in curing conditions or the use of accelerators for projects with tight timelines. However, the ultimate strength often exceeds that of OPC-only concrete, making it suitable for high-load-bearing applications like piles.
3. Structural Performance
Concrete piles reinforced with GGBS demonstrate excellent resistance to chemical attacks, such as sulfate and chloride ingress, which is particularly beneficial in marine environments or areas with aggressive soils. The reduced permeability also enhances the durability of piles, extending their service life and reducing maintenance costs.
Benefits of Using GGBS in Concrete Piles
1. Enhanced Durability
The dense microstructure of GGBS concrete reduces the ingress of harmful ions, protecting the steel reinforcement from corrosion. This is especially important for piles exposed to groundwater or fluctuating water tables.
2. Environmental Sustainability
Using GGBS reduces the carbon footprint of concrete production, as it replaces energy-intensive OPC. Each ton of GGBS used saves approximately 0.9 tons of CO2 emissions. Additionally, it utilizes an industrial by-product, promoting circular economy principles.
3. Economic Advantages
While GGBS may have a slightly higher initial cost than OPC in some regions, the long-term savings from reduced maintenance and extended lifespan often justify the investment. Moreover, its availability in large quantities makes it a cost-effective option for major infrastructure projects.
4. Thermal Control
The low heat of hydration of GGBS concrete minimizes the risk of thermal cracking in large-diameter piles, ensuring structural integrity and reducing the need for costly repairs.
Grinding GGBS for Optimal Performance

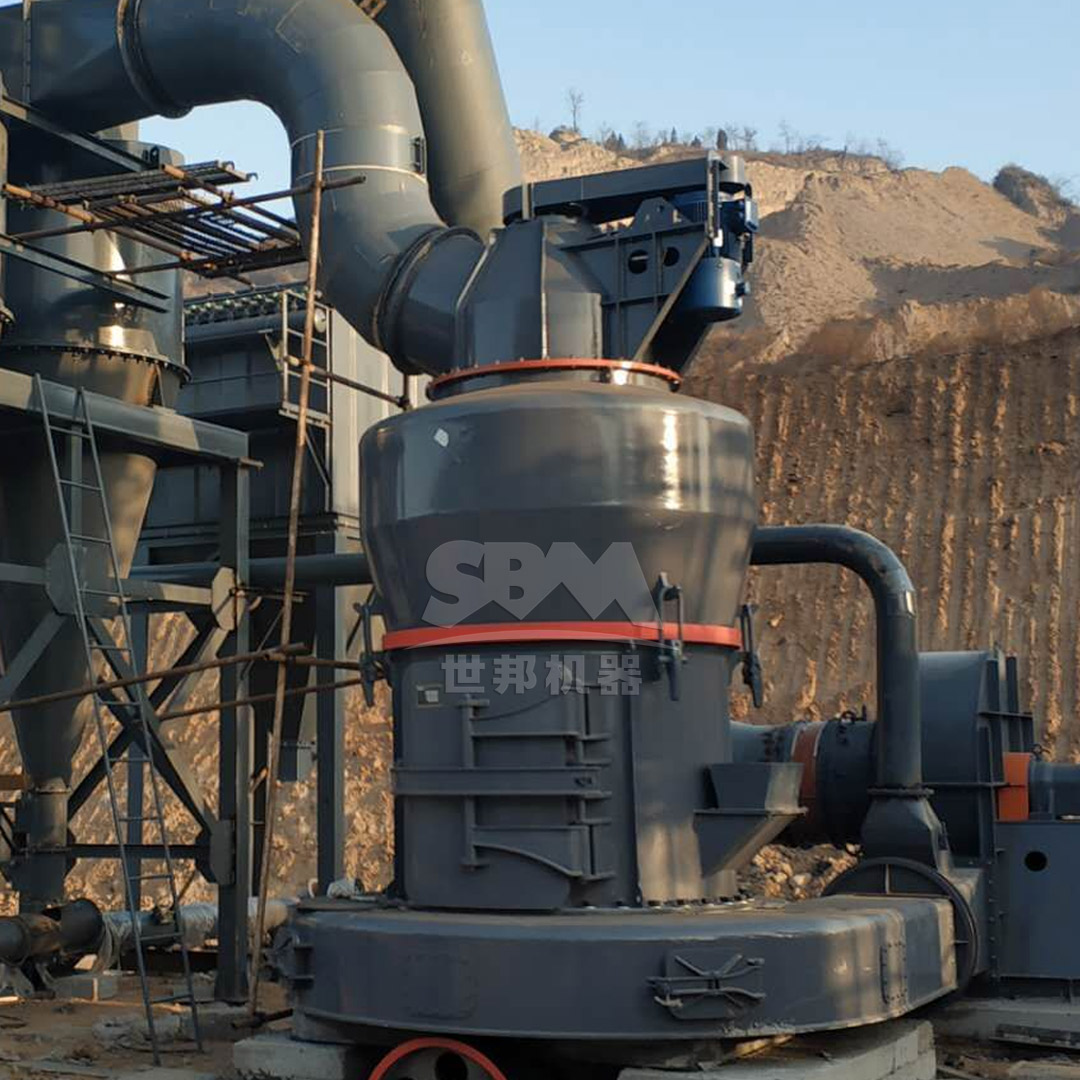

The performance of GGBS in concrete heavily depends on its fineness. Finer particles increase reactivity and improve the mechanical properties of concrete. To achieve the desired fineness (typically 400–600 m²/kg Blaine), advanced grinding equipment is essential. Our SCM Ultrafine Mill is specifically designed for producing high-quality GGBS with consistent fineness. With an output range of 325–2500 mesh (D97 ≤5μm) and capacities up to 25 ton/h, it ensures efficient and precise grinding. Key features include:
- High-efficiency classification with vertical turbine classifiers
- Energy savings of up to 30% compared to conventional mills
- Durable design with extended lifespan for grinding components

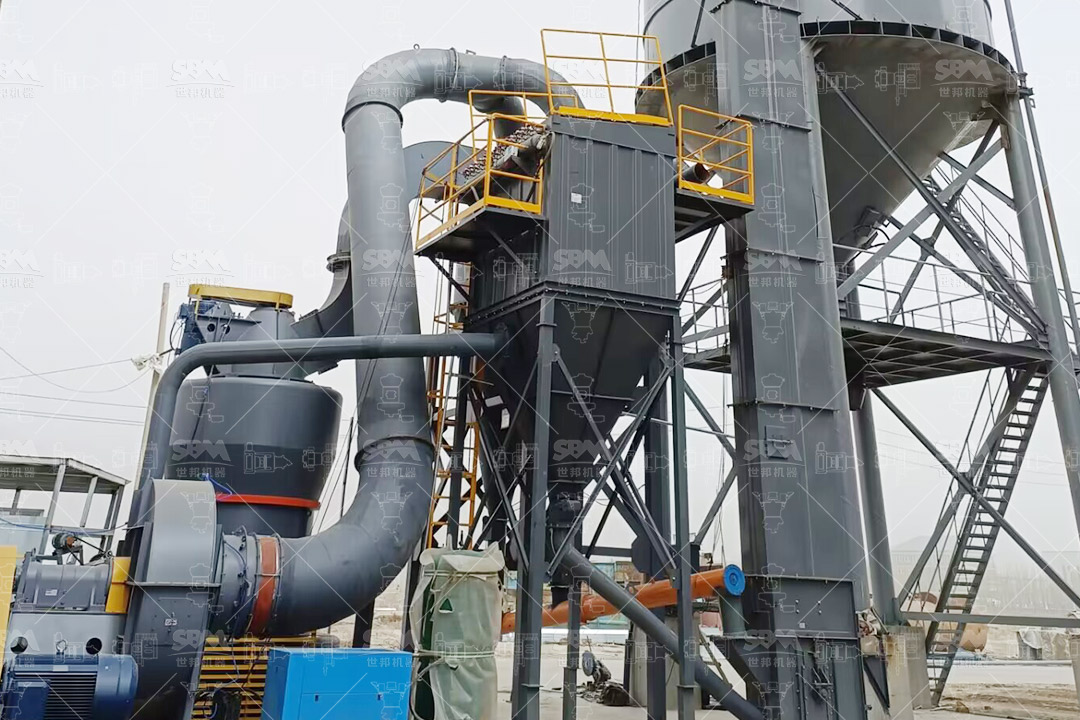

For larger-scale projects, our LM Series Vertical Roller Mill offers integrated grinding, drying, and classification capabilities. It handles feed sizes up to 50mm and delivers outputs of 30–325 mesh, with capacities ranging from 3 to 250 ton/h. Its intelligent control system and low noise operation make it ideal for industrial GGBS production.
Case Studies and Practical Applications
GGBS has been successfully used in concrete piles for major infrastructure projects worldwide. For example, in the construction of the Hong Kong-Zhuhai-Macao Bridge, GGBS was incorporated into the concrete mix for marine piles to enhance durability against seawater corrosion. Similarly, projects in the Middle East have utilized GGBS to mitigate sulfate attack in foundation piles.
Challenges and Considerations
While GGBS offers numerous benefits, its slower early strength development may require extended curing times, which could impact project schedules. Additionally, quality control during grinding and mixing is crucial to ensure consistent performance. Partnering with reliable equipment suppliers, such as our company, ensures that GGBS is ground to the required specifications for optimal results.
Conclusion
The use of GGBS in concrete piles is not only feasible but highly advantageous. Its superior durability, environmental benefits, and long-term economic savings make it an ideal choice for modern construction. To maximize these benefits, investing in advanced grinding technology, such as our SCM Ultrafine Mill or LM Series Vertical Roller Mill, is critical. These machines ensure the production of high-fineness GGBS that meets the stringent requirements of concrete pile applications, contributing to safer, more sustainable infrastructure.
