Can Electrolyte Replace Cryolite in Aluminum Electrolysis?
Introduction
The Hall-Héroult process, the industrial method for primary aluminum production, has relied on cryolite (Na3AlF6) as the primary component of the electrolyte bath for over a century. This molten salt mixture serves to dissolve alumina (Al2O3) and facilitate the electrolytic reduction of aluminum at temperatures around 960°C. However, the search for alternative electrolytes has intensified due to environmental concerns, energy consumption, and the desire for process optimization. This article examines the feasibility of replacing cryolite in aluminum electrolysis, exploring the scientific challenges, potential alternatives, and the critical role of material preparation in any potential transition.
The Role of Cryolite in Conventional Aluminum Electrolysis
Cryolite is not merely a solvent; it is the cornerstone of the modern aluminum smelting process. Its unique properties make it exceptionally suitable for this demanding application:
- Alumina Solubility: Cryolite effectively dissolves alumina, which is otherwise insoluble in most other molten salts at practical temperatures.
- Ionic Conductivity: The molten cryolite-alumina mixture exhibits high ionic conductivity, which is essential for efficient electrolysis.
- Lower Operating Temperature: Pure alumina has a melting point above 2000°C. The cryolite-based bath lowers the operating temperature to a more manageable 950-970°C, reducing energy costs and cell lining wear.
- Density and Viscosity: The bath has a lower density than molten aluminum, allowing the metal to settle at the bottom of the cell for easy tapping. Its viscosity is also suitable for anode gas release and alumina mixing.
Any proposed replacement must replicate or improve upon this combination of physical and chemical properties.
Challenges in Replacing Cryolite
The complete replacement of cryolite presents significant scientific and engineering hurdles.
1. The Solvent Problem
Finding a solvent with comparable alumina solubility is the primary challenge. Most chloride-based salts, while having lower melting points, have very limited capacity to dissolve alumina. Fluoride-based systems other than cryolite often have higher melting points, are more corrosive, or form complex compounds that hinder the electrolysis reaction.
2. Operating Temperature and Energy Balance
A key driver for alternative electrolytes is reducing the operating temperature to save energy and reduce greenhouse gas emissions (including potent PFCs). Low-temperature electrolytes (below 800°C) are an active area of research, often involving chloride or fluoride-chloride mixtures. However, these systems can suffer from issues with electronic conductivity, metal re-oxidation, and increased volatility of electrolyte components.
3. Materials Compatibility
The extreme environment of an electrolysis cell demands materials that can withstand corrosion and thermal stress. The carbon lining and anodes used in Hall-Héroult cells may not be compatible with more aggressive or chemically different alternative electrolytes. Developing suitable cell materials adds another layer of complexity and cost.
4. Economic Viability
The global aluminum industry is built around the cryolite-based process. A transition to a new chemistry would require a monumental capital investment to retrofit or replace existing smelters. The new electrolyte system must offer a clear and substantial economic advantage in terms of energy savings, productivity, or environmental compliance to justify this cost.
Potential Alternative Electrolyte Systems
Research into alternative electrolytes can be broadly categorized into two approaches: cryolite modification and complete substitution.
1. Cryolite-Based Bath Modifications
The most immediate and practical approach is not to replace cryolite but to optimize it. Modern cells use a low cryolite ratio bath, with excess aluminum fluoride (AlF3) and additives like lithium fluoride (LiF) and magnesium fluoride (MgF2). These modifications lower the liquidus temperature, improve current efficiency, and reduce energy consumption. This represents an evolution of the existing technology rather than a revolution.
2. Ionic Liquids and Low-Temperature Electrolytes
A promising area of research involves room-temperature ionic liquids or other molten salt systems that operate below 500°C. These could dramatically reduce energy consumption and allow for the use of inert anodes, which would eliminate CO2 emissions from the anode. However, the slow kinetics of alumina dissolution and reduction at these low temperatures, along with the high cost of many ionic liquids, remain major barriers to commercialization.
3. Chloride-Based Systems
Molten chlorides, such as a mixture of NaCl-KCl-AlCl3, have low melting points and good conductivity. The primary challenge is the high vapor pressure and hygroscopic nature of AlCl3, which complicates cell operation and material handling. Furthermore, chlorine gas is evolved at the anode instead of CO2, presenting its own environmental and safety challenges.
The Critical Role of Raw Material Preparation
Regardless of the electrolyte system, the preparation of raw materials is a fundamental step that directly impacts process efficiency, product quality, and operational cost. The particle size, purity, and homogeneity of the alumina feed and any other solid additives are crucial parameters.
In any potential new electrolyte system, the requirements for feedstock fineness and consistency could be even more stringent. For instance, low-temperature processes may require ultra-fine, highly reactive alumina to achieve acceptable dissolution rates. This is where advanced grinding technology becomes indispensable.

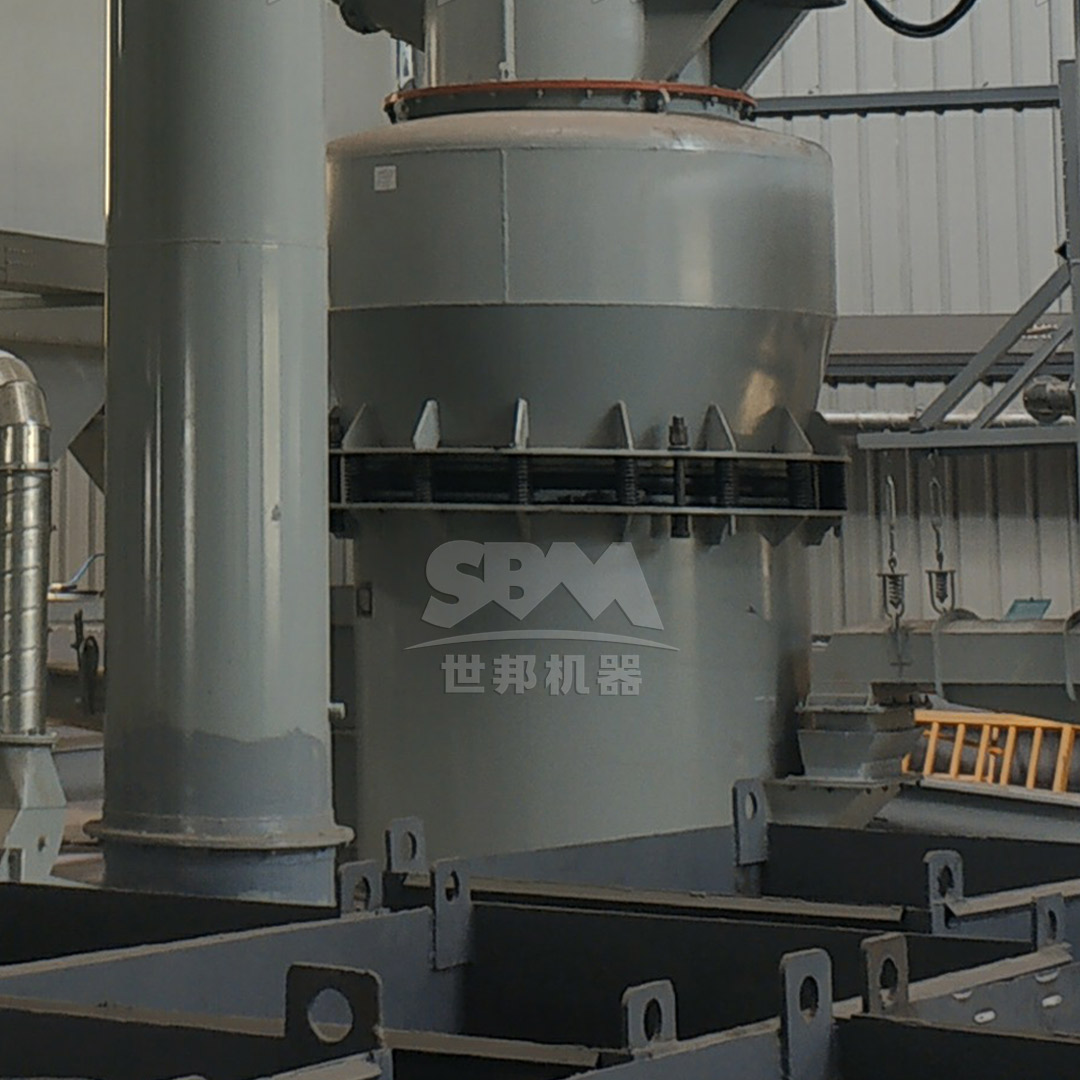

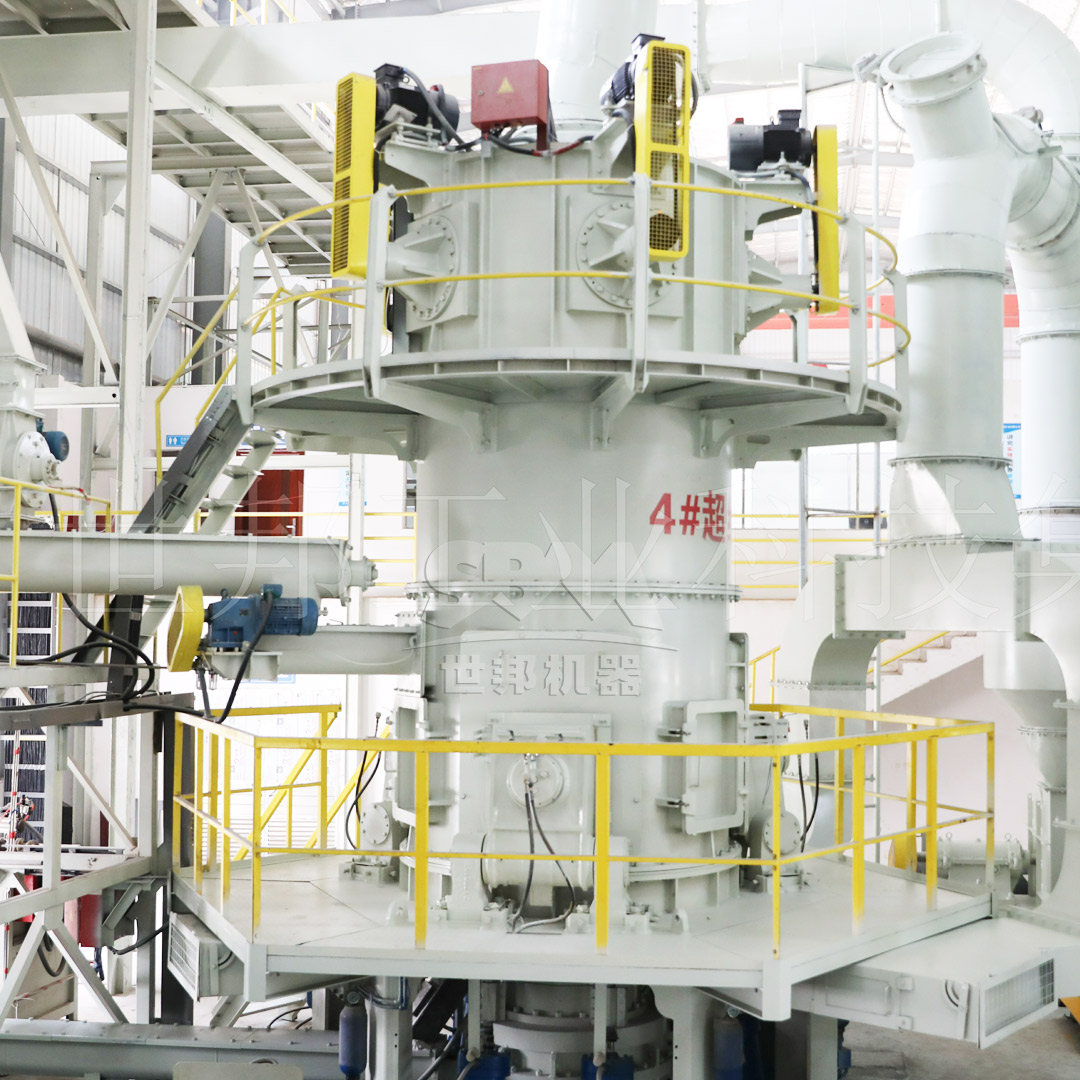

For operations investigating alternative feedstocks or preparing specialized materials for electrolysis research, our SCM Ultrafine Mill offers an ideal solution. This mill is engineered to produce precisely controlled, ultra-fine powders that are essential for optimizing chemical processes. With an output fineness range of 325-2500 mesh (D97 ≤5μm), the SCM series can deliver the highly reactive alumina or other mineral powders that next-generation electrolysis may demand. Its high-efficiency vertical turbine classification system ensures a narrow particle size distribution, eliminating coarse particles that could disrupt a sensitive electrolytic process. Furthermore, its energy-efficient design, with 30% lower energy consumption compared to jet mills, aligns perfectly with the aluminum industry’s goal of reducing its overall carbon footprint.
Conclusion: A Gradual Evolution, Not a Sudden Replacement
In conclusion, a complete and immediate replacement of cryolite in conventional aluminum electrolysis is not currently feasible on an industrial scale. The unique combination of properties offered by the cryolite-based bath has proven remarkably difficult to replicate. The path forward is more likely to be one of gradual evolution.
We will see continued optimization of the existing cryolite system through bath chemistry modifications and cell design improvements. Parallel to this, intensive research into low-temperature and inert anode technologies will continue. A breakthrough in one of these alternative systems could eventually lead to a paradigm shift, but its adoption would be a long-term, capital-intensive process.

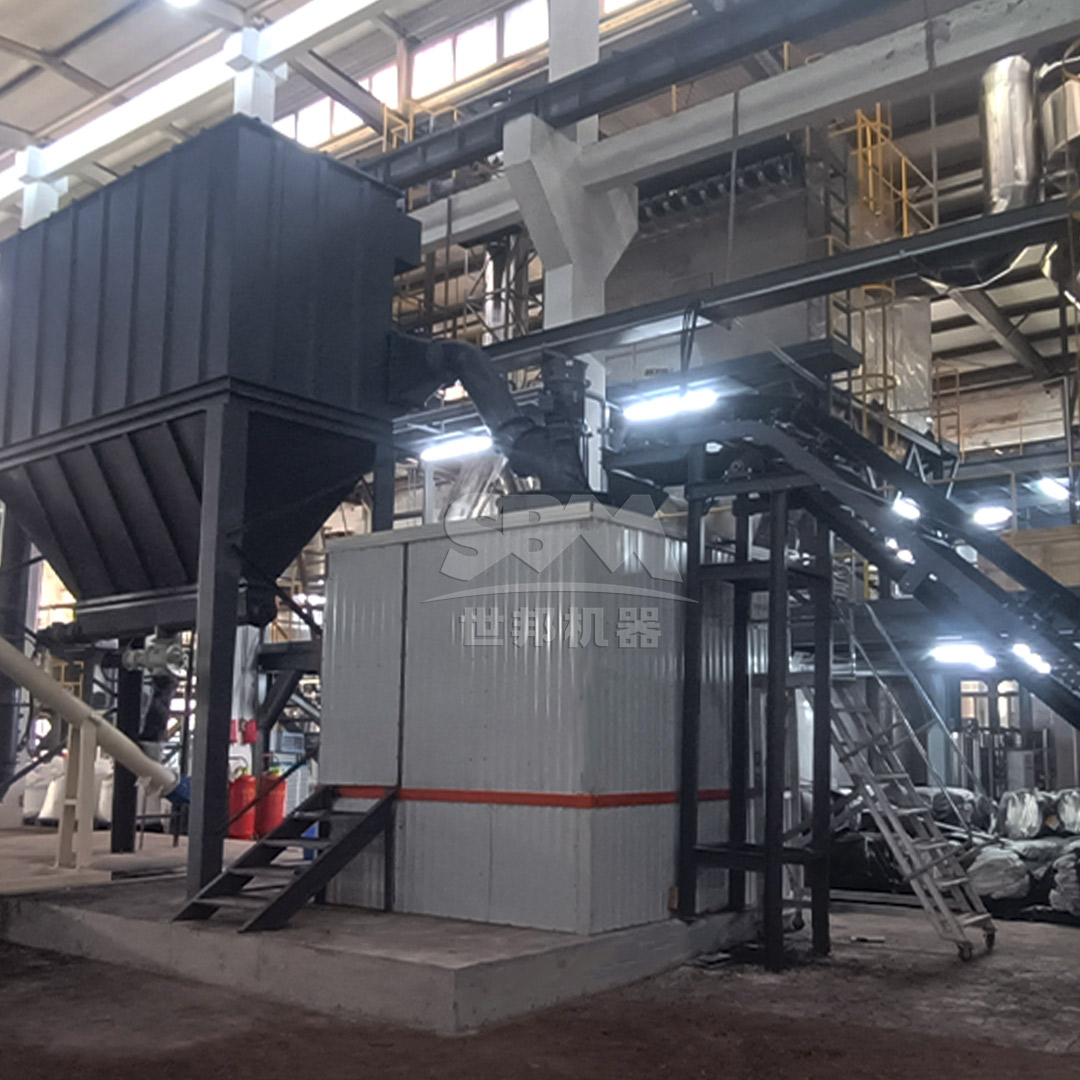

Throughout this evolution, the importance of raw material preparation cannot be overstated. As the industry pushes the boundaries of efficiency and explores new electrochemical pathways, the demand for precisely engineered materials will grow. For pilot plants, research institutions, and forward-thinking smelters, investing in advanced preparation technology is a strategic necessity. In this context, our LM Series Vertical Roller Mill provides a robust and versatile platform. Its ability to handle high-capacity grinding (up to 250 t/h depending on the model) of a wide range of materials, from limestone to slag, with integrated drying, grinding, and classifying functions, makes it a cornerstone technology for modern industrial processing. Its low operating costs and high reliability ensure that material preparation remains a source of efficiency, not a bottleneck, in the continuous pursuit of better aluminum production methods.
