Application of Vertical Copper Matte Mill in Copper Smelting Process

Introduction

The copper smelting industry is a cornerstone of modern infrastructure and technology, providing the essential material for electrical wiring, electronics, and various industrial applications. A critical stage in the pyrometallurgical process is the treatment of copper matte, a mixture of copper sulfides and iron sulfides produced in the smelting furnace. To facilitate subsequent converting and refining stages, the solidified matte must be ground to a specific, uniform fineness. This is where advanced milling technology becomes paramount. The application of Vertical Roller Mills (VRMs), specifically designed for abrasive and hard materials, has revolutionized this process, offering unparalleled efficiency, reliability, and control compared to traditional ball milling systems.

The Role of Grinding in Copper Matte Processing

After smelting, molten copper matte is granulated or cast into slabs and cooled. This solid matte must be pulverized before being fed into a converter. The primary objectives of grinding are:

• Increased Surface Area: Fine grinding exposes a greater surface area of the matte particles, which is crucial for the efficiency of the subsequent oxidizing reactions in the converter.
• Homogeneous Feed: Producing a consistent particle size distribution ensures uniform processing in the converter, leading to stable operation and predictable copper quality.
• Liberation: While matte is a distinct phase, grinding can help liberate any entrapped impurities, making them more accessible for removal.

Traditional methods often involved multi-stage crushing followed by ball mills. While functional, these systems are energy-intensive, have high wear rates, and offer less precise control over the final product size.

Advantages of Vertical Roller Mills for Copper Matte

The integration of Vertical Roller Mills into the copper matte grinding circuit addresses the limitations of conventional technology. The core advantages include:

• Superior Energy Efficiency: VRMs operate on the principle of bed compression grinding, where pressure is applied to a bed of material rather than relying on impact and attrition alone. This method is significantly more energy-efficient, reducing specific power consumption by 30-50% compared to ball mills.
• Precise Particle Size Control: Integrated dynamic classifiers allow for real-time adjustment of the product fineness. This ensures a tight particle size distribution (PSD), which is critical for optimizing converter performance. The ability to achieve a consistent D97 value is a key benefit.
• High Availability and Low Wear: Modern VRMs feature robust designs with wear-resistant materials for grinding components (rollers and table liners). Their design also allows for quick replacement of wear parts, minimizing downtime. The absence of grinding media (balls) further reduces operating costs.
• Compact Footprint: The vertical design and integrated grinding and classification functions mean VRMs occupy up to 50% less space than a traditional ball mill circuit with equivalent capacity.
• Environmental Benefits: VRMs are typically fully enclosed systems operating under negative pressure, virtually eliminating dust emissions. Furthermore, their lower energy consumption directly translates to a reduced carbon footprint.

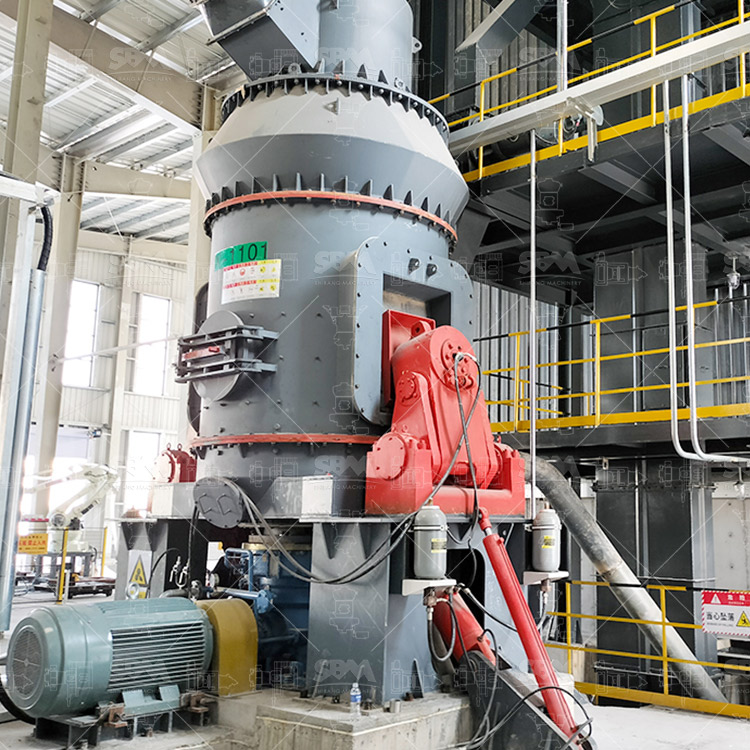

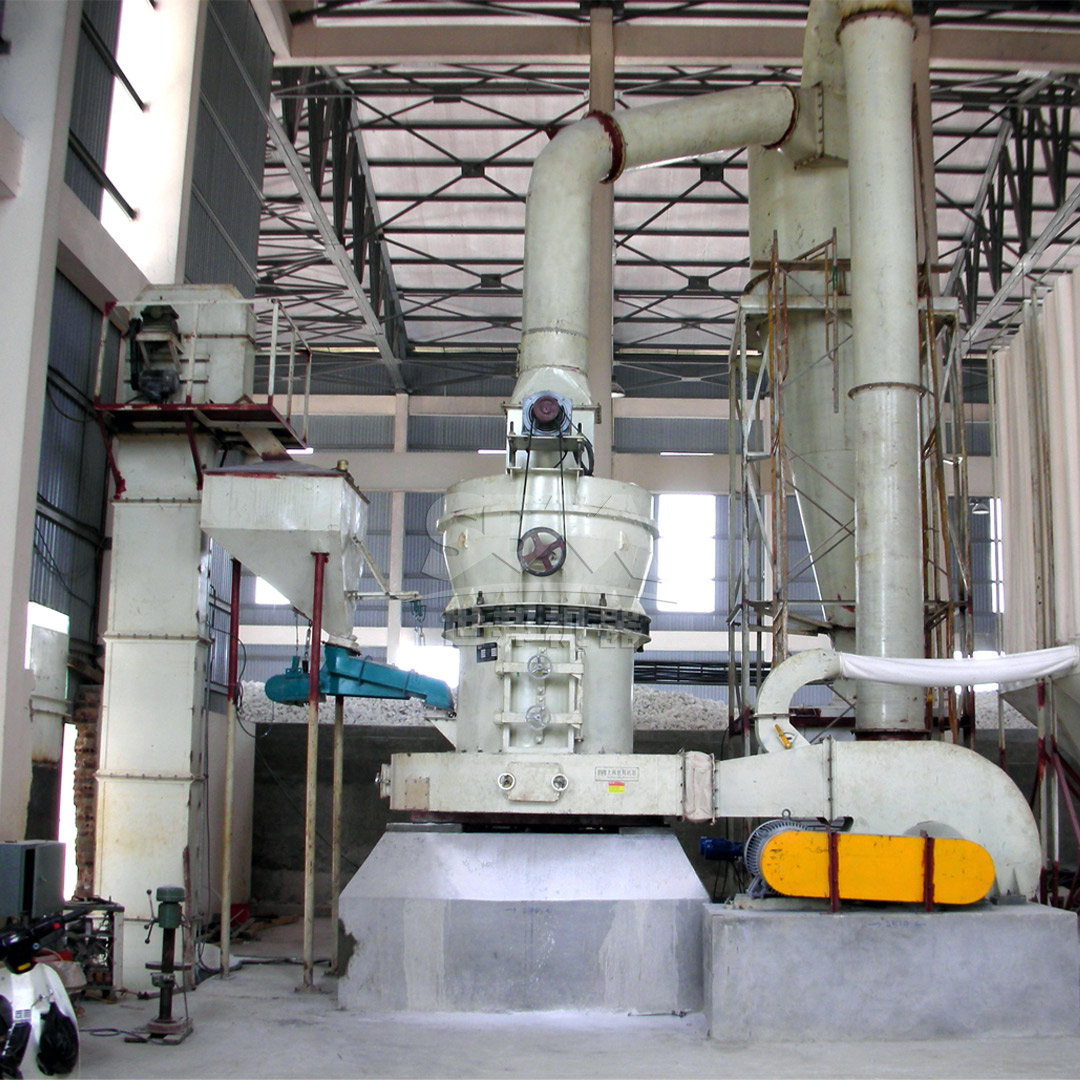

How a Vertical Roller Mill Processes Copper Matte

The process within a VRM is continuous and highly efficient:

1. Feed Introduction: Pre-crushed copper matte (typically ≤50mm) is fed onto the center of a rotating grinding table via a sealed airlock feeder.
2. Grinding: Centrifugal force moves the material outward under heavy, hydraulically-loaded grinding rollers. The material is ground by compression and shear forces as it passes between the rollers and the table.
3. Drying and Transport: Hot gas (often waste heat from other process stages) is injected into the mill housing, drying the matte and carrying the fine particles upward to the classifier.
4. Classification: The air-stream carrying the ground material enters a high-efficiency, dynamic classifier located at the top of the mill. Fine particles that meet the target size exit the mill with the gas flow, while oversize particles are rejected and fall back onto the grinding table for further grinding.
5. Product Collection: The fine matte powder is separated from the gas stream in a downstream baghouse or cyclone collector, ready for transport to the converter.

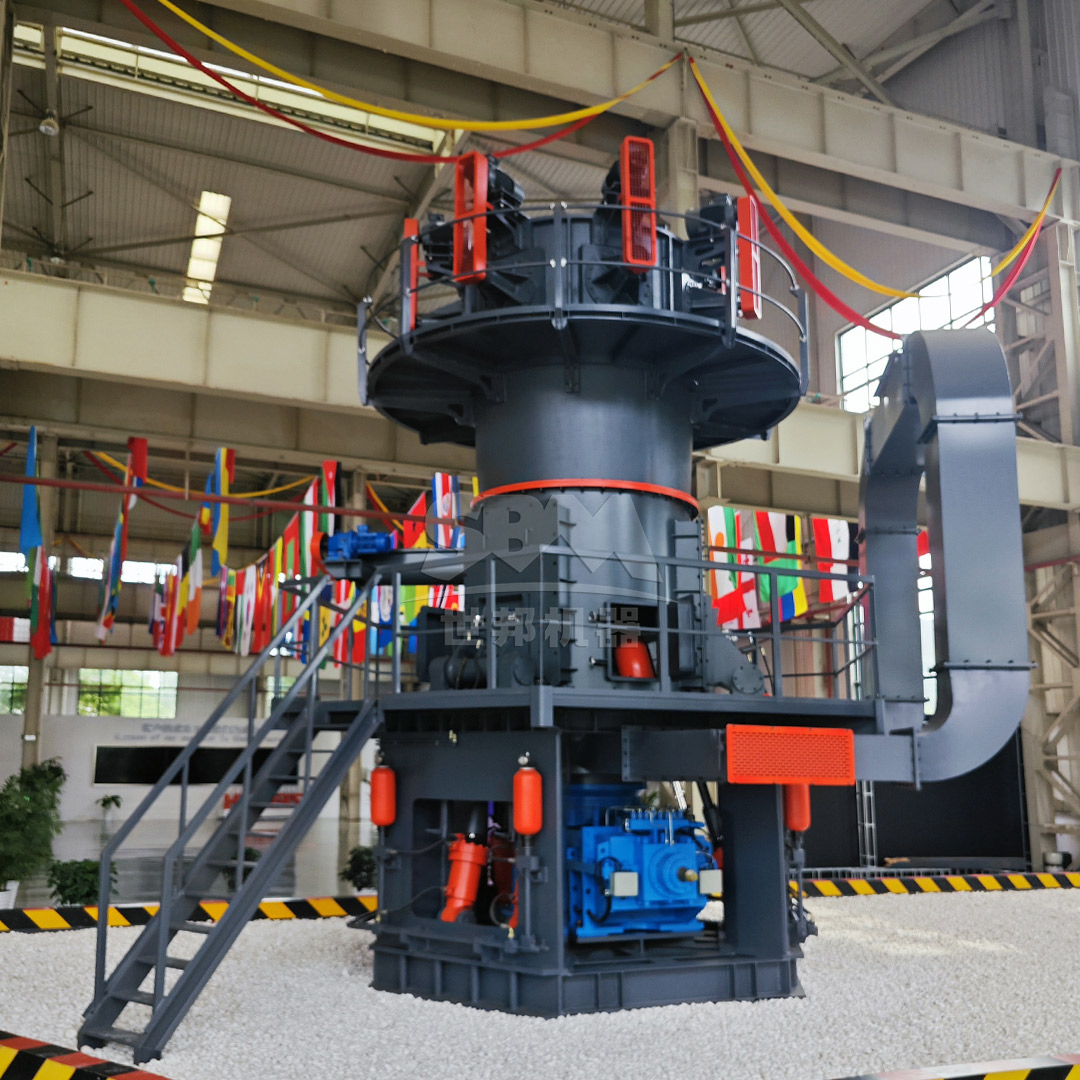

Recommended Product: LM Series Vertical Roller Mill

For the demanding application of copper matte grinding, our LM Series Vertical Roller Mill represents the ideal technological solution. Engineered for high capacity and exceptional durability, this mill is built to handle the abrasive nature of copper sulfides while delivering outstanding operational economy.

The LM Series mill excels in this context due to its key features:

• Integrated Intelligent Control System: Expert-level automatic control ensures stable operation, real-time monitoring of key parameters (pressure, temperature, power), and remote operation capabilities, reducing人工干预.
• Durable Grinding Components: The磨辊与磨盘 (grinding rollers and table) are equipped with special wear-resistant alloys, offering a lifespan several times longer than standard materials, which is critical for abrasive matte.
• High Grinding Efficiency: The mill’s ability to handle feed sizes up to 50mm and produce a finely tuned product ranging from 30-325 mesh (and finer with special models) matches the exact requirements of matte preparation.
• Proven Reliability: With models like the LM220K (800kW, 36-105 t/h capacity) or the larger LM280K (1250kW, 50-170 t/h capacity), the LM Series offers a scalable solution for smelters of any size, ensuring high availability and low maintenance costs.

By adopting our LM Vertical Roller Mill, copper smelters can achieve a significant reduction in operating costs, improved product quality for the converter, and enhanced environmental performance.

Considerations for Implementation

Successfully implementing a VRM for copper matte requires careful consideration:

• Material Abrasiveness: Copper matte is highly abrasive. The selection of appropriate wear materials for rollers and table is non-negotiable for economic viability.
• Feed Size Distribution: A consistent feed size from the upstream crushing circuit is vital for stable mill operation and optimal performance.
• System Integration: The VRM must be integrated with a reliable feeding system, hot gas source, product collection system (e.g., high-efficiency baghouse), and process control system.
• Process Gas: The use of hot gas serves the dual purpose of drying and material transport. The temperature and volume must be carefully controlled to prevent oxidation of the matte and to ensure efficient classification.

Conclusion

The adoption of Vertical Roller Mill technology for grinding copper matte is a clear step forward for the copper smelting industry. It replaces energy-intensive and less controllable traditional milling circuits with a compact, efficient, and intelligent system. The benefits are tangible: drastic reductions in energy consumption, precise control over product fineness, lower maintenance costs due to improved wear resistance, and a smaller environmental footprint. As smelters worldwide seek to improve efficiency and sustainability, the vertical roller mill, particularly robust models like our LM Series, has become an indispensable tool in modern copper production, ensuring that the critical matte grinding process contributes to overall operational excellence.
