Application of Raymond Mill for Mineral Powder in Highway Asphalt Mixing Plants
Introduction
The quality of mineral powder filler is a critical factor determining the performance and longevity of asphalt mixtures used in highway construction. Modern asphalt mixing plants require precisely processed mineral powders with controlled particle size distribution, specific surface area, and chemical stability. Raymond mill technology, specifically designed for mineral processing, has emerged as the preferred solution for producing high-quality mineral powder fillers that meet the stringent requirements of asphalt production.
This article examines the technical requirements for mineral powder in asphalt applications, explores how Raymond mill technology meets these demands, and presents our company’s advanced milling solutions specifically engineered for the asphalt industry.
Technical Requirements for Mineral Powder in Asphalt Mixtures
Particle Size Distribution
The optimal particle size distribution for mineral powder in asphalt mixtures typically ranges from 0.075mm to 0.6mm (200 mesh to 30 mesh). The filler must have a specific gradation that ensures proper filling of voids between aggregate particles while maintaining adequate binder coating. Research indicates that approximately 70-85% of particles should pass the 0.075mm sieve for optimal performance in dense-graded asphalt mixtures.
Surface Characteristics
Mineral powder used as filler must exhibit specific surface properties that promote adhesion with asphalt binder. The surface area typically ranges between 2500-5000 cm²/g, depending on the mineral composition. Limestone-based powders, being alkaline, provide superior adhesion with acidic asphalt binders through chemical bonding mechanisms.
Chemical Composition
The chemical composition of mineral powder significantly influences the aging characteristics of asphalt mixtures. Calcium carbonate content exceeding 90% is generally preferred for limestone-based fillers, while silica content should be minimized to prevent detrimental effects on moisture sensitivity and aging resistance.
Raymond Mill Technology for Mineral Powder Production

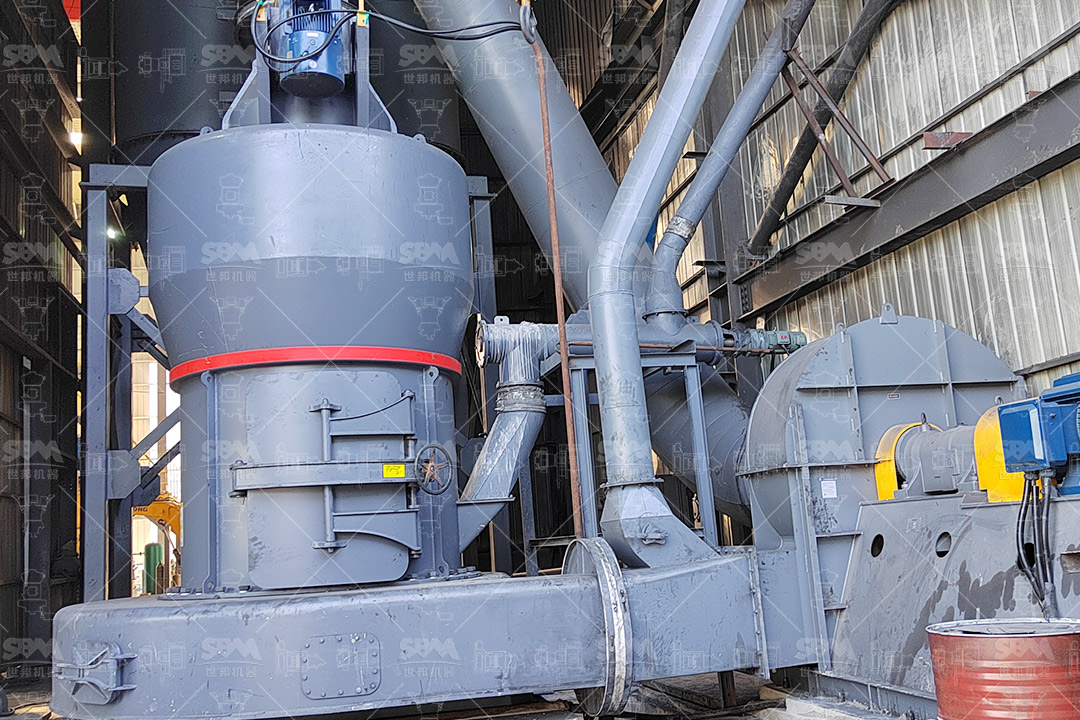

Working Principle
Raymond mills operate on the principle of grinding materials between stationary and moving components. The fundamental process involves feeding raw minerals into the grinding chamber where rotating rollers exert pressure against a stationary ring. Centrifugal force causes the material to move outward toward the grinding ring where it is pulverized between the rollers and ring.
The ground material is then carried by air stream to the classifier where oversize particles are separated and returned to the grinding chamber for further processing. This closed-circuit system ensures consistent product quality and precise control over particle size distribution.
Advantages for Asphalt Applications
Raymond mills offer several distinct advantages for producing mineral powder for asphalt applications. The technology provides excellent control over particle size distribution, which is crucial for achieving the desired void filling characteristics in asphalt mixtures. The dry grinding process eliminates moisture content issues that could affect asphalt binder adhesion.
Additionally, the low operating temperature of Raymond mills (typically below 90°C) preserves the chemical properties of mineral fillers, preventing thermal degradation that could compromise performance in asphalt mixtures. The systems also offer high production efficiency with relatively low energy consumption compared to alternative grinding technologies.
Our Recommended Solutions for Asphalt Mineral Powder Production

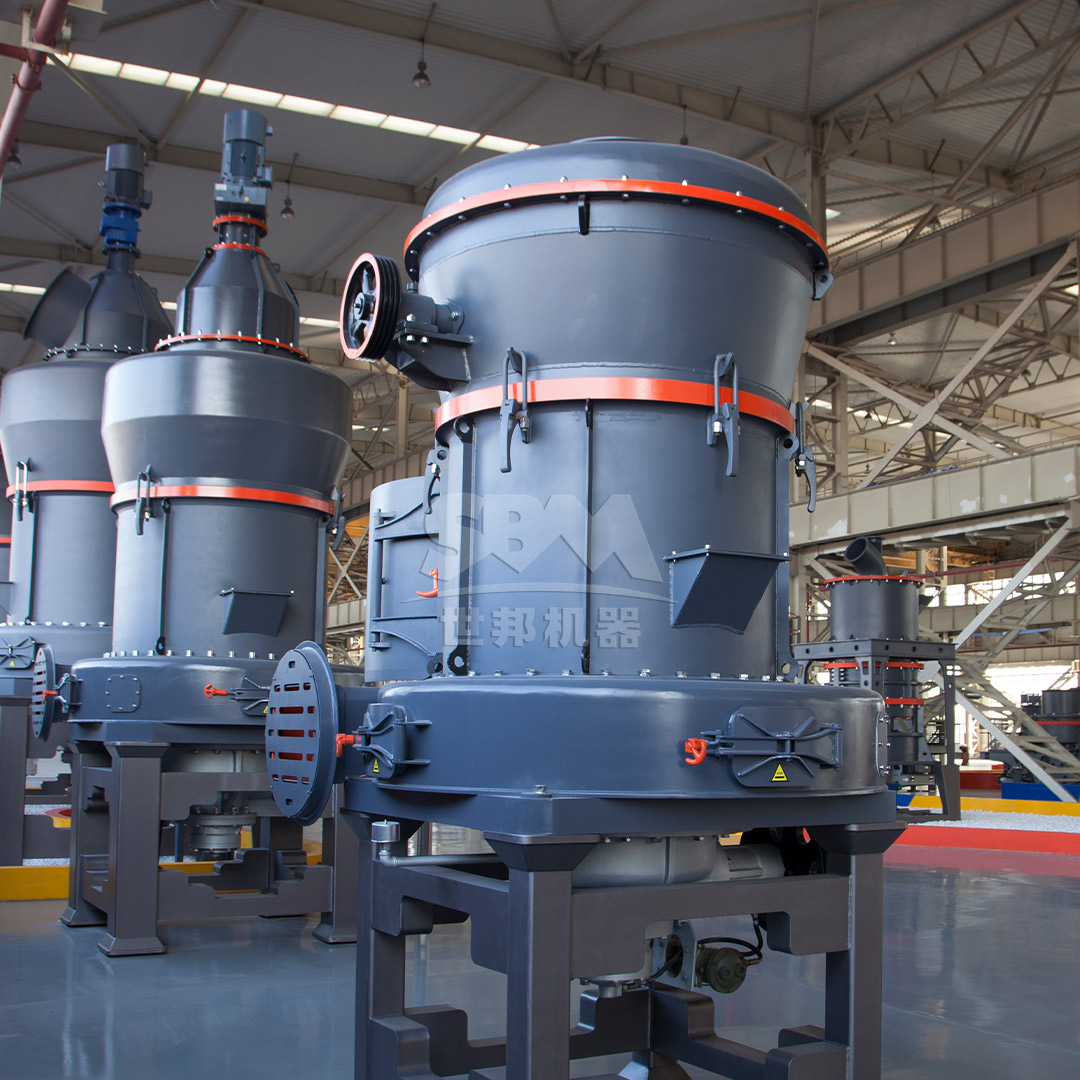

MTW Series Trapezium Mill
For asphalt plants requiring high-capacity mineral powder production, we recommend our MTW Series Trapezium Mill. This advanced milling solution offers exceptional performance characteristics specifically suited for asphalt mineral filler production.
The MTW Series features a unique grinding mechanism with curved air duct design that reduces energy consumption by approximately 20% compared to conventional mills. The integrated high-efficiency classifier ensures precise particle size control within the 30-325 mesh range (600-45μm), perfectly matching the requirements for asphalt filler applications.
Key technical advantages include:
- Anti-wear shovel design with combined blades reducing maintenance costs
- Curved air duct optimization minimizing energy loss and improving transmission efficiency
- Integrated bevel gear transmission achieving 98% transmission efficiency
- Wear-resistant volute structure enhancing air classification efficiency
With capacity ranging from 3-45 tons per hour depending on model specification, the MTW Series can serve asphalt plants of various sizes. The MTW215G model, with 45 TPH capacity, is particularly suitable for large-scale asphalt production facilities requiring substantial mineral powder supply.
SCM Ultrafine Mill for Specialized Applications
For projects requiring ultra-fine mineral powders or specialized asphalt formulations, our SCM Ultrafine Mill provides exceptional capabilities. This system produces powders in the range of 325-2500 mesh (45-5μm) with remarkable consistency and efficiency.
The SCM Series incorporates advanced features including vertical turbine classification for precise particle size control and intelligent systems that automatically adjust operating parameters based on real-time feedback of product fineness. The mill’s unique grinding chamber design without bearing screws ensures stable operation and reduced maintenance requirements.
Notable technical specifications:
- Input size: ≤20mm
- Output fineness: 325-2500 mesh (D97≤5μm)
- Processing capacity: 0.5-25 ton/h (model dependent)
- Energy consumption: 30% lower than jet mills with double the capacity
The SCM1680 model, with 25 TPH capacity and 315kW main motor power, represents our flagship solution for high-volume production of ultra-fine mineral powders for advanced asphalt applications.

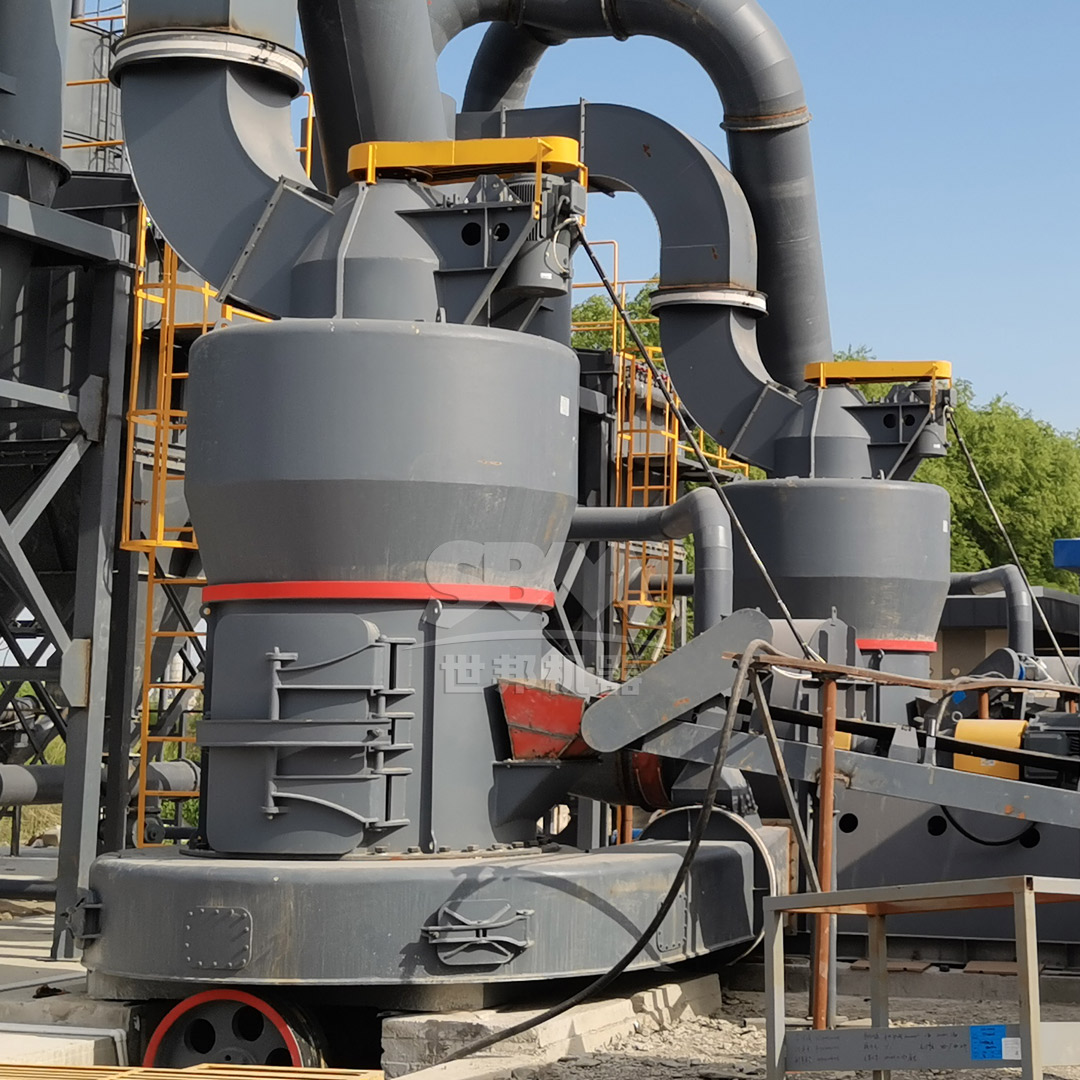

Integration with Asphalt Mixing Plants
System Configuration
Successful integration of Raymond mill systems with asphalt mixing plants requires careful consideration of several factors. The milling system should be located to minimize powder transportation distance while maintaining adequate separation from the mixing plant to prevent contamination. Pneumatic conveying systems are typically employed for efficient transfer of mineral powder to storage silos.
Modern control systems allow for seamless integration between the milling operation and asphalt production. Automated quality monitoring systems can adjust mill parameters based on real-time analysis of produced mineral powder, ensuring consistent quality that meets asphalt mixture specifications.
Environmental Considerations
Our Raymond mill systems incorporate comprehensive environmental protection features essential for integration with asphalt plants. Pulse dust collection systems exceed international standards with collection efficiency exceeding 99.9%. Advanced noise reduction technologies maintain operational noise below 75dB, ensuring compliance with workplace health and safety regulations.
The fully enclosed negative pressure operation prevents dust emissions, maintaining clean operating conditions that are compatible with the environmental requirements of modern asphalt production facilities.
Case Studies and Performance Data
Production Efficiency
Field data from installations demonstrate the exceptional efficiency of our Raymond mill systems in asphalt mineral powder production. The MTW Series typically achieves specific energy consumption of 25-35 kWh/ton for producing mineral powder in the 200-325 mesh range, significantly lower than alternative technologies.
Maintenance intervals extend to 800-1000 operating hours for routine inspections and 4000-5000 hours for major component replacement, resulting in availability rates exceeding 95% – critical for continuous asphalt production operations.
Quality Performance
Mineral powders produced using our technology consistently meet or exceed quality requirements for asphalt applications. Testing confirms excellent consistency with variation coefficients for fineness typically below 3%. The products demonstrate superior performance in asphalt mixture tests, including improved Marshall stability, enhanced moisture resistance, and reduced aging characteristics.
Future Trends and Developments
The future of mineral powder production for asphalt applications points toward increasingly sophisticated control systems and integration with Industry 4.0 concepts. Our ongoing research focuses on developing smart milling systems that can automatically adjust operating parameters based on real-time analysis of raw material characteristics and downstream asphalt production requirements.
Advances in wear-resistant materials promise extended component life and reduced maintenance requirements, while energy efficiency improvements align with the asphalt industry’s sustainability goals. The integration of artificial intelligence for predictive maintenance and optimization represents the next frontier in mineral powder production technology.
Conclusion
Raymond mill technology represents the optimal solution for producing high-quality mineral powder for asphalt mixing plants. The precise control over particle characteristics, combined with high efficiency and reliability, makes this technology indispensable for modern asphalt production.
Our MTW Series Trapezium Mill and SCM Ultrafine Mill offer comprehensive solutions for asphalt plants of all sizes, from small batch operations to large-scale continuous production facilities. With advanced features specifically designed for mineral processing applications, these systems ensure consistent production of mineral powders that enhance the performance and longevity of asphalt pavements.
As the asphalt industry continues to evolve toward higher performance standards and sustainable practices, advanced milling technology will play an increasingly important role in ensuring the quality and consistency of mineral filler materials.
