Application of Nano Calcium Carbonate in Adhesives: Enhancing Performance and Durability
Introduction
The adhesive industry has witnessed remarkable advancements through the incorporation of nanotechnology, particularly with nano calcium carbonate (nano-CaCO3) as a functional filler. This ultrafine material, typically ranging from 1-100 nanometers in particle size, has revolutionized adhesive formulations by enhancing mechanical properties, thermal stability, and durability while maintaining cost-effectiveness. The production of high-quality nano calcium carbonate requires sophisticated grinding technology capable of achieving precise particle size distribution and consistent quality – a challenge that conventional milling equipment often fails to meet.
Fundamental Properties of Nano Calcium Carbonate
Nano calcium carbonate possesses unique characteristics that make it particularly suitable for adhesive applications. Its high surface area-to-volume ratio, typically between 20-80 m²/g, provides extensive interfacial contact with polymer matrices. The particles’ cubic or spherical morphology ensures uniform dispersion within adhesive systems, while their nanoscale dimensions allow for quantum effects that enhance binding capabilities.
The surface chemistry of nano-CaCO3 can be modified through various treatments, including stearic acid coating, to improve compatibility with different adhesive matrices. This surface modification reduces particle agglomeration and enhances the interfacial adhesion between the filler and polymer, resulting in superior mechanical performance.
Performance Enhancement Mechanisms
Mechanical Property Improvement
The incorporation of nano calcium carbonate significantly improves the tensile strength, modulus, and toughness of adhesive formulations. At optimal loading levels (typically 5-15% by weight), nano-CaCO3 acts as a reinforcing agent, transferring stress efficiently throughout the polymer matrix. The nanoparticles restrict polymer chain mobility, thereby increasing stiffness without compromising flexibility.
Research has demonstrated that properly dispersed nano-CaCO3 can increase tensile strength by 30-50% and impact strength by 40-60% compared to unfilled adhesives or those containing conventional calcium carbonate fillers. This enhancement is particularly valuable in structural adhesives used in automotive and construction applications.
Thermal Stability and Flame Retardancy
Nano calcium carbonate improves the thermal stability of adhesives by acting as a heat sink and creating tortuous pathways that retard heat transfer. The particles promote char formation at elevated temperatures, providing an insulating layer that protects the underlying adhesive. This property is crucial for applications requiring fire resistance, such as building materials and electronic assemblies.
Rheological Modification
The addition of nano-CaCO3 influences the rheological behavior of adhesives, allowing for precise control over viscosity and thixotropy. This enables formulators to develop products with optimal application characteristics, from sprayable coatings to gap-filling pastes. The nanoparticles’ high surface area facilitates stronger interactions with thickeners and other rheology modifiers, resulting in improved sag resistance and better performance on vertical surfaces.
Production Technology for High-Quality Nano Calcium Carbonate
The performance benefits of nano calcium carbonate in adhesives are directly dependent on particle size distribution, morphology, and surface characteristics. Achieving the required specifications demands advanced milling technology capable of precise particle size control and consistent output quality.

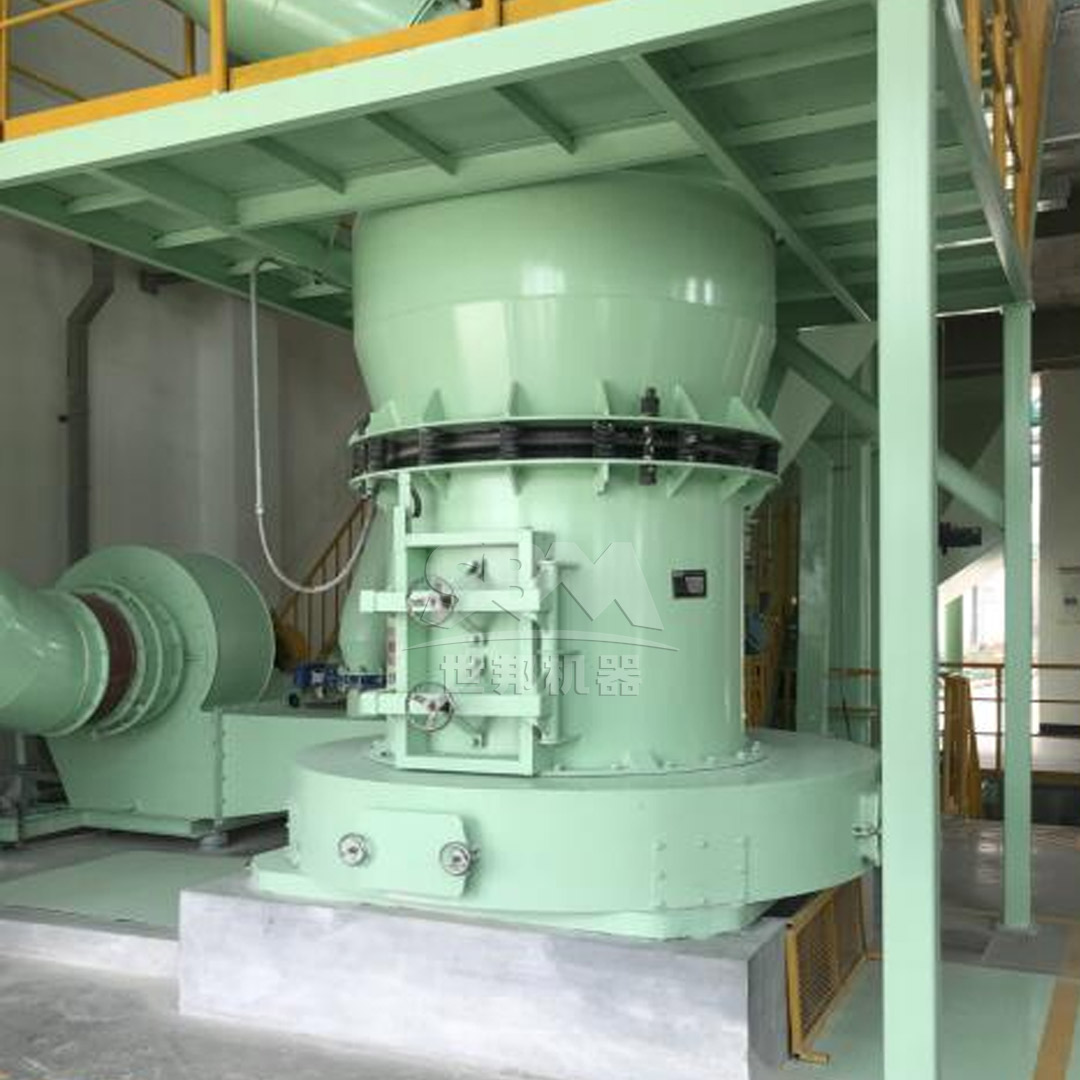

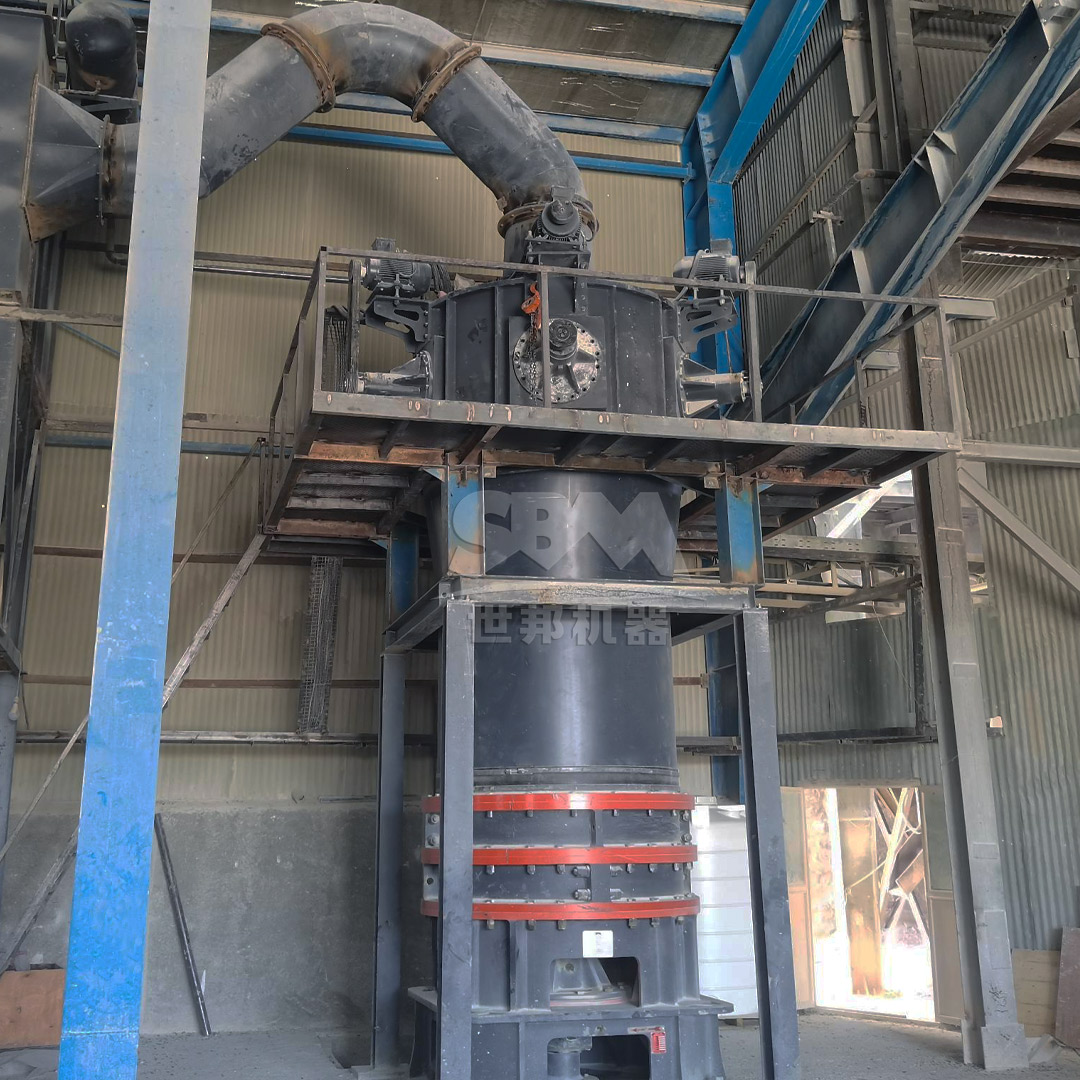

For ultra-fine grinding applications requiring particles in the 325-2500 mesh range (D97 ≤ 5μm), the SCM Ultrafine Mill represents an ideal solution. This advanced grinding system delivers exceptional performance with output fineness ranging from 325 to 2500 mesh (D97 ≤ 5μm), making it perfectly suited for producing nano calcium carbonate for high-performance adhesive applications.
The SCM series incorporates several technological innovations that ensure superior product quality:
- High-Precision Classification: The vertical turbine classifier enables precise particle size切割, eliminating coarse particle contamination and ensuring uniform product quality
- Energy Efficiency: With capacity twice that of jet mills and 30% lower energy consumption, the SCM series offers significant operational cost savings
- Durability: Specially designed roller and grinding ring materials extend service life multiple times compared to conventional mills
- Environmental Compliance: Pulse dust collection efficiency exceeds international standards, while soundproofing maintains noise levels below 75dB

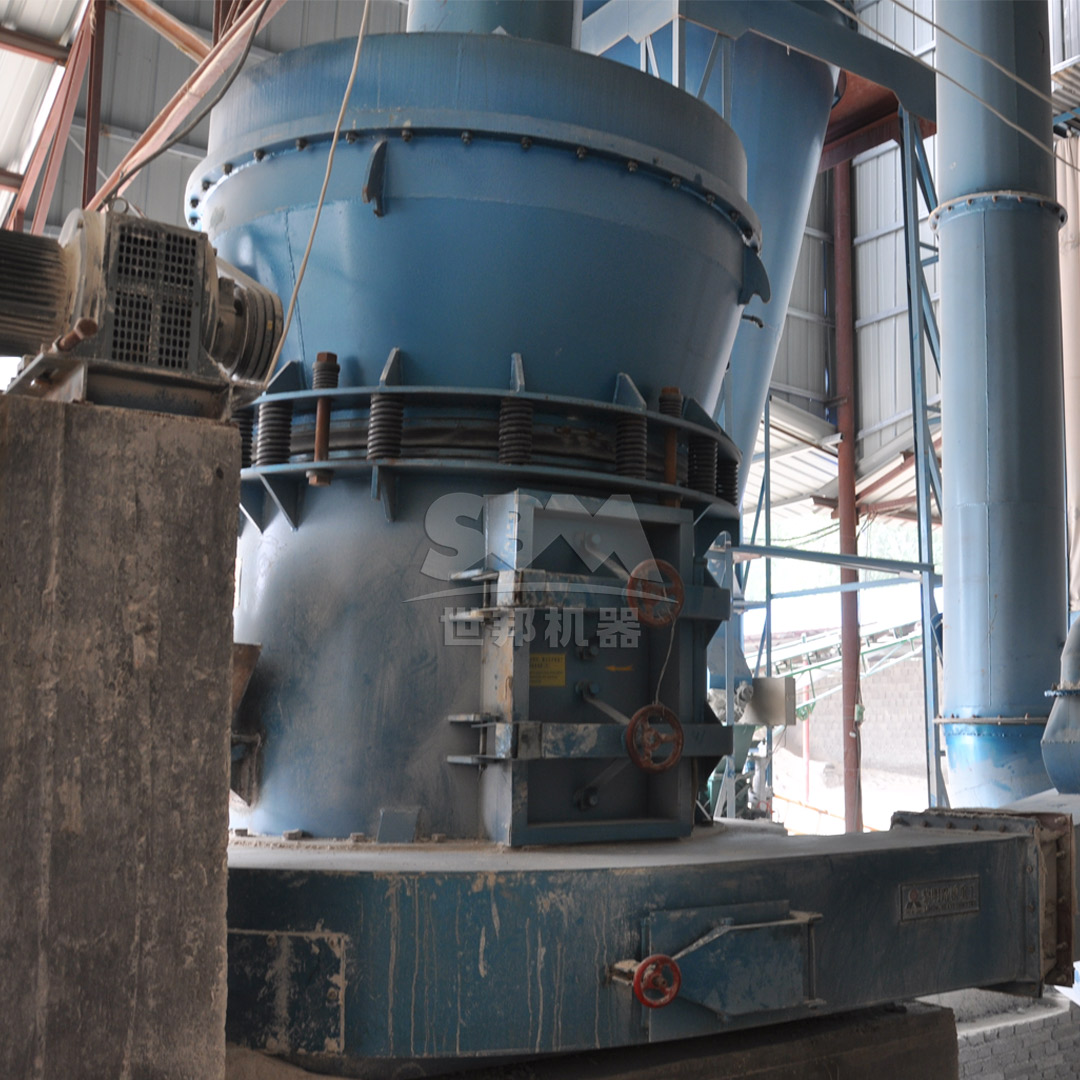

For applications requiring slightly coarser particles in the 30-325 mesh range, the MTW Series Trapezium Mill provides an excellent alternative. This robust grinding system handles input sizes up to 50mm and delivers throughput capacities from 3-45 tons per hour, depending on the specific model. The MTW series features innovative curved air channel design that reduces energy loss and improves transmission efficiency, along with combined blade design that significantly lowers maintenance costs.
Application-Specific Benefits in Various Adhesive Types
Polyurethane Adhesives
In polyurethane systems, nano calcium carbonate improves both the green strength and final cure properties. The nanoparticles accelerate moisture-curing reactions by providing nucleation sites, while simultaneously enhancing the dimensional stability of cured adhesives. The improved thermal stability allows polyurethane adhesives to maintain performance at elevated temperatures encountered in automotive under-hood applications.
Epoxy Adhesives
Nano-CaCO3 significantly enhances the fracture toughness of epoxy adhesives without compromising their high strength and modulus. The nanoparticles act as stress concentrators that initiate and terminate microcracks, preventing catastrophic failure. This property is particularly valuable in structural bonding applications where impact resistance and fatigue performance are critical.
Acrylic Adhesives
In acrylic systems, nano calcium carbonate improves UV stability and weatherability by scattering harmful radiation. The particles also enhance the pressure-sensitive properties of acrylic adhesives, providing better tack and peel strength while maintaining clean removability when required.
Silicone Adhesives
For silicone-based formulations, nano-CaCO3 improves mechanical properties while maintaining the exceptional flexibility and high-temperature performance characteristic of silicones. The thermal conductivity of nano calcium carbonate can be leveraged to develop thermally conductive silicone adhesives for electronic applications.
Processing Considerations and Dispersion Techniques
Successful implementation of nano calcium carbonate in adhesive formulations requires careful attention to dispersion techniques. The high surface energy of nanoparticles promotes agglomeration, which can compromise performance if not properly addressed.
High-shear mixing equipment is essential for breaking down agglomerates and achieving uniform dispersion. The mixing process should be optimized to balance dispersion quality with viscosity management, as excessive shear can sometimes lead to undesirable rheological changes. Surface-modified nano-CaCO3 typically disperses more readily than unmodified versions, though the specific modification must be compatible with the adhesive chemistry.
Economic and Environmental Benefits
Beyond performance enhancements, nano calcium carbonate offers significant economic advantages. As an extender, it reduces formulation costs while maintaining or improving properties. The density of nano-CaCO3 allows for volume-based cost savings compared to more expensive polymer resins.
From an environmental perspective, nano calcium carbonate is non-toxic and abundant, making it an environmentally friendly alternative to synthetic nanoparticles. Its use can contribute to sustainable development goals by reducing dependence on petroleum-based materials and enabling lighter-weight adhesive formulations that reduce transportation energy costs.
Future Trends and Developments
The future of nano calcium carbonate in adhesives will likely see increased focus on specialized surface modifications tailored to specific polymer systems. Advances in production technology, such as the SCM Ultrafine Mill’s continuous improvement in energy efficiency and particle size control, will make high-quality nano-CaCO3 more accessible to adhesive formulators.
Emerging applications include smart adhesives with self-healing capabilities, where nano calcium carbonate particles could serve as reservoirs for healing agents or as triggers for autonomic repair mechanisms. The development of bio-based adhesives incorporating nano-CaCO3 also represents a growing research area aligned with circular economy principles.
Conclusion
Nano calcium carbonate has established itself as a versatile and effective functional filler for enhancing adhesive performance across multiple application sectors. Its ability to improve mechanical properties, thermal stability, and processing characteristics makes it invaluable for formulators seeking to develop next-generation adhesive products. The successful implementation of nano-CaCO3 depends on consistent supply of high-quality material with controlled particle size distribution – an requirement met by advanced grinding systems like the SCM Ultrafine Mill and MTW Series Trapezium Mill.
As adhesive technology continues to evolve, nano calcium carbonate will play an increasingly important role in meeting the demanding performance requirements of modern industrial applications while addressing economic and environmental considerations. The ongoing development of production technologies ensures that formulators will have access to ever-improving nano-CaCO3 products tailored to their specific needs.
