Application of Attapulgite Raymond Mill in Dry Mineral Processing of Attapulgite Clay

Introduction to Attapulgite Clay and Its Processing Challenges

Attapulgite clay, also known as palygorskite, is a magnesium aluminum phyllosilicate mineral with a unique fibrous crystal structure. This structure gives it exceptional colloidal, absorptive, and rheological properties, making it highly valuable in numerous industrial applications including drilling fluids, absorbents, binders, catalysts, and pharmaceutical uses. The dry mineral processing of attapulgite clay presents specific challenges due to its fibrous nature, moisture sensitivity, and the requirement for precise particle size distribution to maximize its functional properties. The fibrous crystals must be liberated without being destroyed, and the final product often requires very fine grinding to achieve the desired surface area and reactivity.

Traditional grinding methods can damage the crystal structure, reducing the effectiveness of the clay. Furthermore, attapulgite often contains varying moisture content, which can lead to clogging and inefficient operation in many milling systems. Therefore, selecting the appropriate grinding technology is paramount to producing a high-quality attapulgite powder that meets market specifications for purity, fineness, and preservation of its inherent structural properties.

The Role of Raymond Mill Technology in Attapulgite Processing

Raymond Mill technology, specifically the pendulum roller mill design, has proven to be highly effective for the dry grinding of non-metallic minerals like attapulgite. The principle involves grinding material between rotating rollers and a stationary grinding ring. The rollers swing outward due to centrifugal force, pressing firmly against the ring and crushing the material fed into the grinding chamber.

For attapulgite processing, this technology offers several distinct advantages. The grinding force is primarily applied as compression rather than impact, which is better suited for liberating the fibrous crystals without excessive breakage. The system can handle materials with moderate moisture content when coupled with appropriate drying and feeding systems. Furthermore, the integrated dynamic classifier allows for precise control over the final product fineness, a critical factor for many attapulgite applications. The entire process is a closed-circuit system, promoting efficiency and minimizing dust emissions.

Key Considerations for Optimal Milling

To achieve optimal results when processing attapulgite clay in a Raymond Mill, several factors must be considered. The feed size should be consistently controlled, typically requiring a primary crushing stage to ensure particles are less than 30mm. The moisture content of the raw clay should be managed; excessive moisture can be mitigated by introducing hot air into the system, effectively combining drying and grinding operations. The wear of grinding components must be monitored, as the abrasive nature of clay minerals can lead to increased maintenance costs if not addressed with proper metallurgy. Finally, the classifier speed is a crucial variable that directly determines the cut point and the particle size distribution of the finished product.

Introducing Our Advanced Milling Solutions for Attapulgite

Our company offers a range of advanced grinding mills engineered to meet the specific demands of mineral processing, including the delicate task of milling attapulgite clay. Our machines are designed for high efficiency, reliability, and product quality.

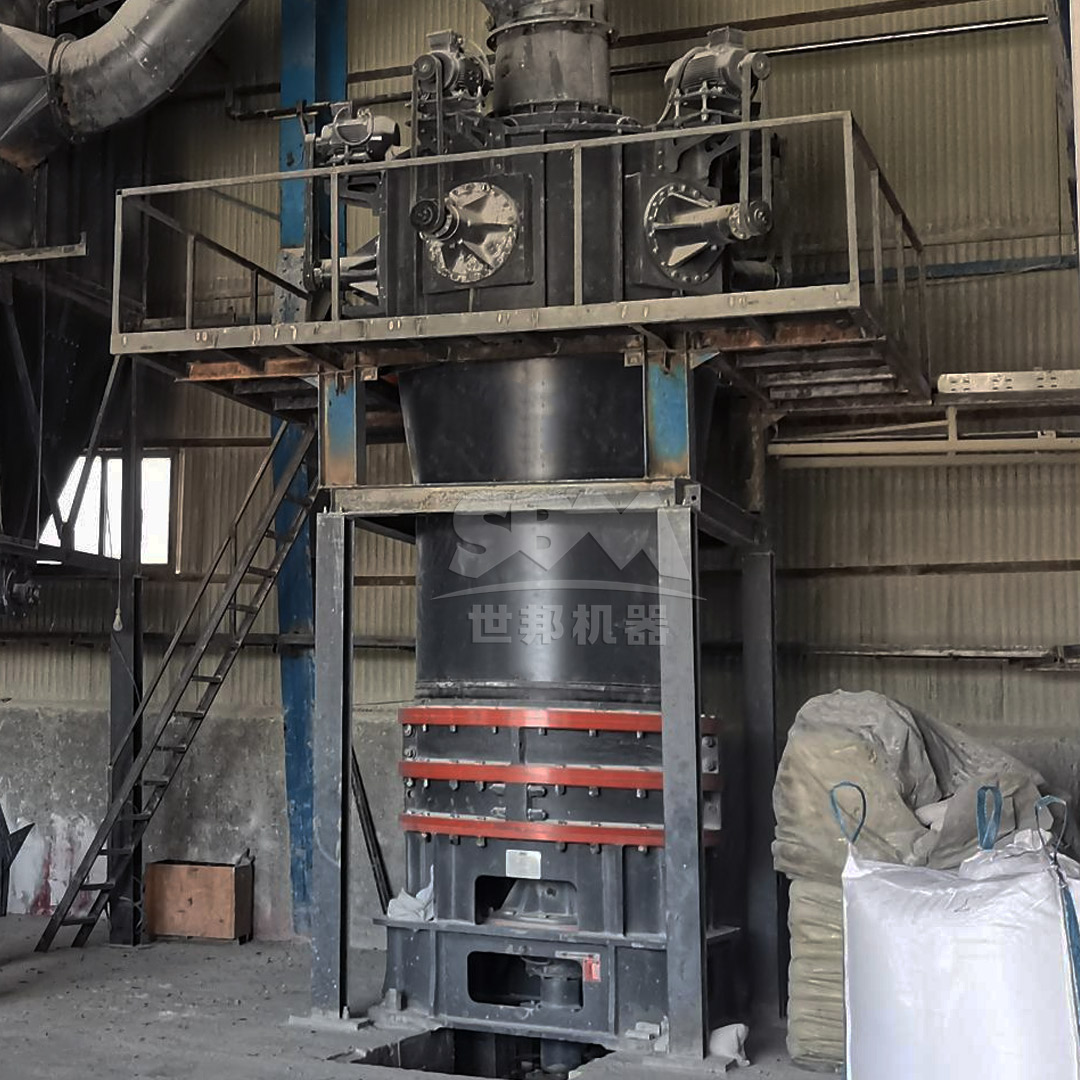

Recommended Product: SCM Series Ultrafine Mill (45-5μm)

For applications requiring very fine attapulgite powders with a high degree of uniformity, we highly recommend our SCM Series Ultrafine Mill. This mill is specifically designed to produce ultra-fine powders in the range of 325 to 2500 mesh (D97 ≤ 5μm), which is often required for high-value applications of attapulgite such as in pharmaceuticals or high-performance absorbents.

The SCM Ultrafine Mill boasts several technical advantages that make it ideal for attapulgite:

• High Efficiency & Energy Savings: It offers twice the capacity of a jet mill while reducing energy consumption by 30%. Its intelligent control system provides automatic feedback on product fineness.
• High-Precision Classification: A vertical turbine classifier ensures precise particle size cuts with no coarse powder contamination, guaranteeing a uniform final product.
• Durable Design: Specially manufactured roller and ring components significantly extend service life. The innovative bearingless screw design in the grinding chamber ensures stable operation.
• Environmental Protection: Equipped with a high-efficiency pulse dust collector that exceeds international standards and a soundproof room design to keep noise levels below 75dB.

With models like the SCM1000 (1.0-8.5 ton/h, 132kW) or the larger SCM1680 (5.0-25 ton/h, 315kW), you can select a unit that perfectly matches your production requirements for high-grade ultrafine attapulgite powder.

Alternative Solution: MTW Series European Trapezium Mill

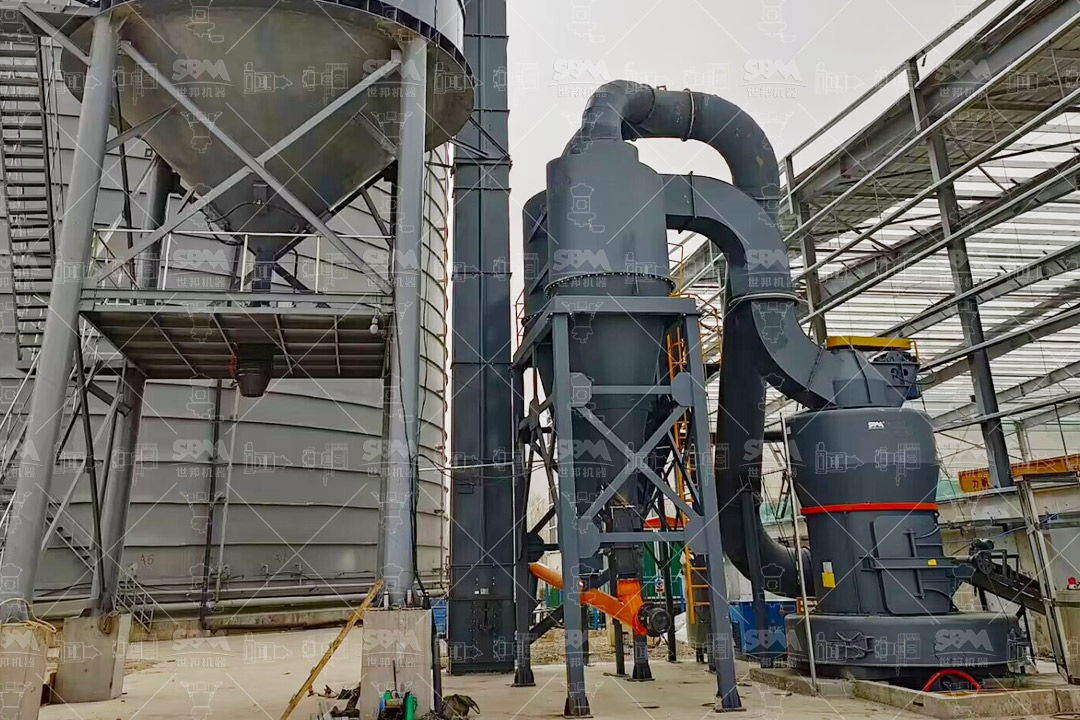

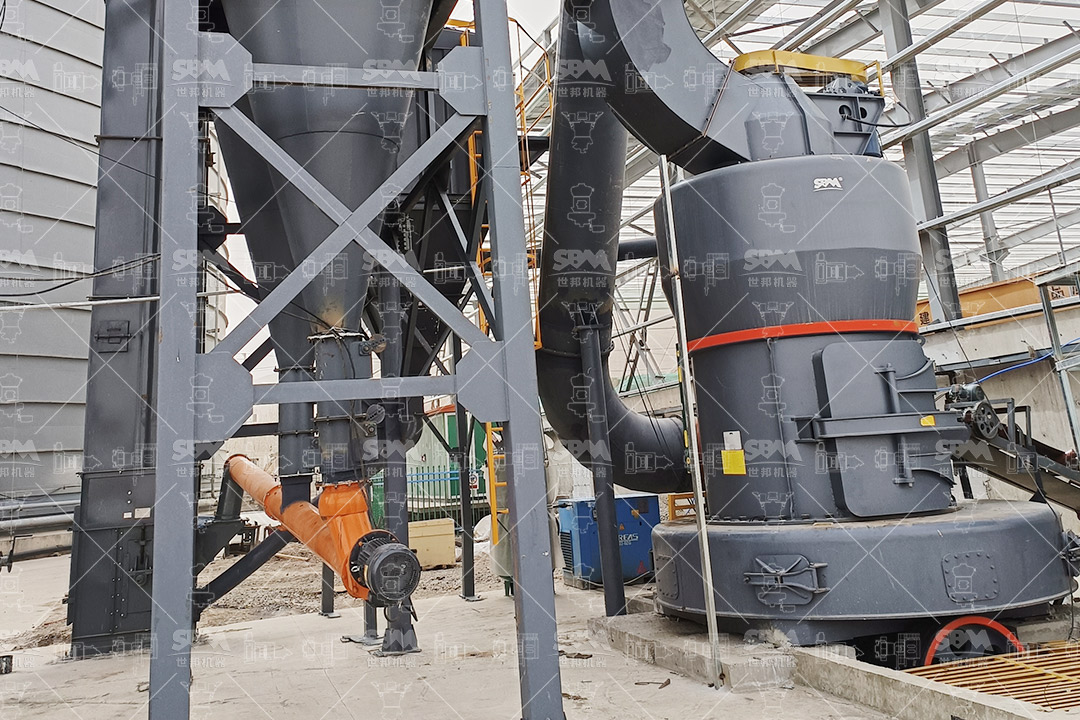

For operations targeting a slightly coarser product or requiring higher throughput capacities, our MTW Series European Trapezium Mill is an excellent choice. It is capable of producing powders from 30 to 325 mesh (up to 0.038mm) with handling capacities ranging from 3 to 45 tons per hour.

Its key features include a wear-resistant shovel design with combined blades to reduce maintenance costs, an optimized curved air duct to reduce energy loss and improve transmission efficiency, and an integral conical gear transmission with a 98% drive efficiency. The MTW series, such as the MTW215G model (15-45 ton/h, 280kW), is built for robustness and high-volume production, making it a workhorse for standard attapulgite products.

Conclusion

The dry processing of attapulgite clay demands a milling solution that can deliver precise particle size control, preserve the valuable fibrous structure, and operate efficiently and cleanly. Raymond Mill technology, particularly as embodied in our SCM Ultrafine Mill and MTW European Trapezium Mill, provides an ideal technical platform to meet these challenges. By leveraging advanced design features like high-precision classifiers, durable grinding components, and intelligent control systems, our equipment enables producers to maximize the value of their attapulgite resources and consistently deliver products that meet the stringent requirements of diverse industrial markets.
