Analysis of Vertical Roller Mill Structural Features from the Diagram
Introduction
Vertical Roller Mills (VRMs) are critical equipment in the grinding industry, known for their efficiency, precision, and adaptability. This article delves into the structural features of VRMs, highlighting key components and their functions, supported by diagrams and technical insights. We will also explore how advanced VRM designs, such as our SCM Ultrafine Mill and LM Series Vertical Roller Mill, exemplify these features with superior performance and innovation.
Structural Components of Vertical Roller Mills
VRMs consist of several integral parts that work in harmony to achieve fine grinding. The primary components include the grinding table, rollers, classifier, drive system, and housing. Each element plays a vital role in the mill’s operation.

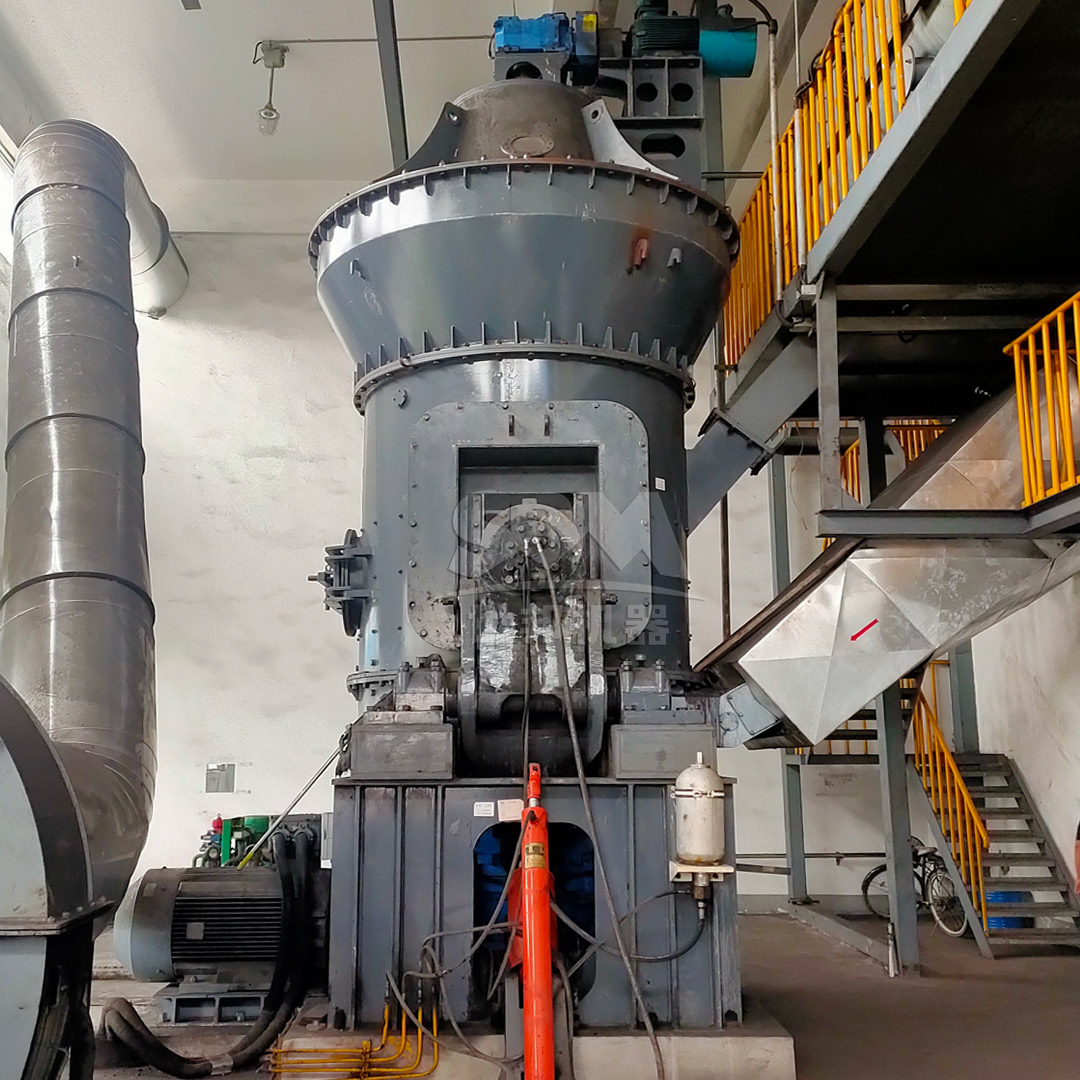

Grinding Table and Rollers
The grinding table is a rotating surface where material is fed and ground by the rollers. The rollers, typically two to four in number, apply pressure to the material layer on the table, causing compression and shear forces that break down particles. Our LM Series Vertical Roller Mill features a robust grinding table and rollers made from special materials, ensuring extended service life and stable operation. For instance, the LM220K model handles up to 105 tons per hour with an input size of ≤50mm, demonstrating high capacity and durability.

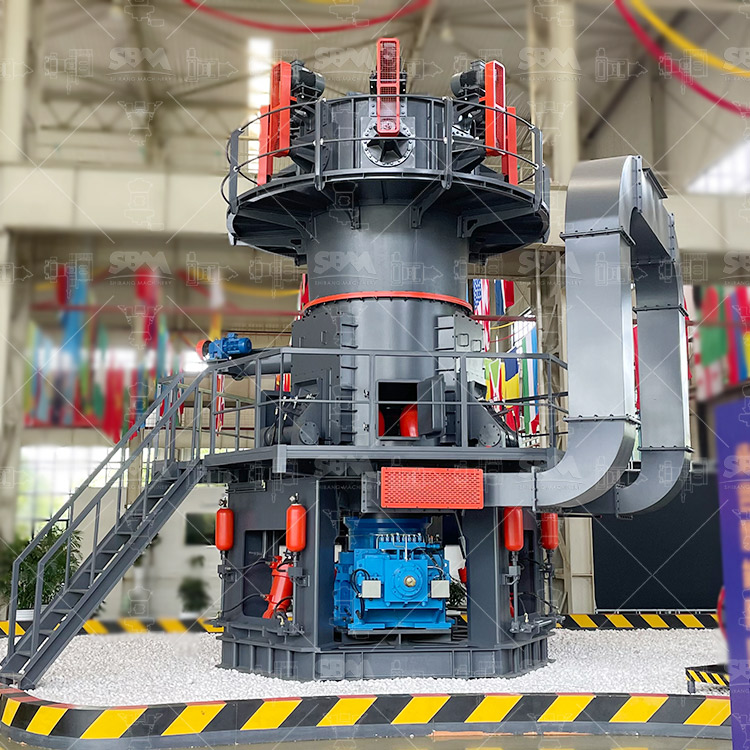

Classifier System
The classifier is crucial for controlling product fineness. It separates fine particles from coarse ones, returning the latter for regrinding. Advanced VRMs, like our SCM Ultrafine Mill, incorporate a vertical turbo classifier that achieves precise particle size distribution, with output fineness ranging from 325 to 2500 mesh (D97≤5μm). This ensures uniform product quality without coarse powder contamination.
Drive and Transmission
The drive system, usually comprising a motor and reducer, powers the grinding table. Efficient transmission is key to reducing energy consumption. Our MTW Series Trapezium Mill utilizes a cone gear overall transmission with 98% efficiency, saving space and lowering installation costs. This design minimizes energy loss and enhances reliability.
Technological Advantages in Modern VRMs
Modern VRMs integrate several technological advancements that boost performance, efficiency, and sustainability.
Energy Efficiency
VRMs are designed to consume less energy compared to traditional ball mills. For example, our SCM Ultrafine Mill reduces energy consumption by 30% while doubling the output of jet mills. Intelligent control systems automatically adjust operational parameters based on real-time feedback, optimizing power usage.
Precision and Control
High-precision classifiers and automated systems ensure consistent product quality. The LM Series Vertical Roller Mill features an expert automatic control system that supports remote and local operation, reducing manual intervention and enhancing precision. This is particularly evident in models like the LM130X-GX, which offers fineness between 325 and 600 mesh.
Durability and Maintenance
Durable materials and innovative designs extend the lifespan of critical components. Our VRMs use special alloy rollers and grinding rings that last several times longer than conventional parts. The无轴承螺杆研磨腔 (bearingless screw grinding chamber) in the SCM Ultrafine Mill ensures stable operation with minimal maintenance.
Application-Specific Design Variations
VRMs are tailored for various applications, such as mineral grinding, coal pulverization, and slag processing. Each variant has unique features to handle specific materials and requirements.
Mineral Grinding Mills
For mineral processing, VRMs like the LM130K to LM280K models offer outputs from 10 to 170 tons per hour, with fineness adjustable between 170-40μm. These mills are ideal for industries requiring high-capacity fine grinding.
Coal and Slag Mills
Coal mills, such as the LM80M to LM280M series, are designed for efficient pulverization of coal with fineness control (R0.08mm 5-20%). Slag mills, like the LM130N to LM370N, handle moist slag with outputs up to 110 tons per hour, producing powder with specific surface area ≥420m²/kg.
Recommendation: SCM Ultrafine Mill and LM Series Vertical Roller Mill
Based on the structural analysis, we highly recommend our SCM Ultrafine Mill and LM Series Vertical Roller Mill for their exceptional performance. The SCM Ultrafine Mill excels in producing superfine powders (5-45μm) with high efficiency and low energy consumption. For instance, the SCM1680 model processes 5-25 tons per hour with a main motor power of 315kW. Meanwhile, the LM Series offers versatility for various materials, with models like the LM220K providing high capacity (36-105 tons/h) and integrated grinding, drying, and classification functions.
Environmental and Economic Benefits
VRMs contribute significantly to environmental sustainability and cost reduction. Their enclosed design minimizes dust emissions, with pulse dust collectors achieving efficiency beyond international standards. Noise levels are kept below 75dB, ensuring a safer workplace. Economically, the reduced energy and maintenance costs lead to lower operational expenses, making VRMs a smart investment for modern industries.
Conclusion
Vertical Roller Mills represent a pinnacle of grinding technology, combining robust structural features with advanced control systems for optimal performance. Through detailed analysis, it is evident that VRMs like our SCM Ultrafine Mill and LM Series offer unparalleled efficiency, precision, and reliability. By adopting these mills, industries can achieve superior product quality while adhering to environmental and economic standards.
