Advanced Nanoscale Powder Dispersion Techniques for Ultrafine Grinding Mills

In modern industrial applications, achieving uniform nanoscale powder dispersion is critical for enhancing material performance in sectors ranging from pharmaceuticals to advanced ceramics. This article explores cutting-edge dispersion methodologies integrated with high-efficiency grinding mills, with a focus on ZENITH’s innovative solutions.

1. Challenges in Ultrafine Powder Processing

The pursuit of sub-micron particle distributions presents three fundamental challenges:

Agglomeration forces: Van der Waals interactions causing particle clustering
Thermal degradation: Heat generation during intensive milling
Classification precision: Maintaining tight particle size distributions

Diagram of nanoscale particle dispersion in grinding chamber

2. Breakthrough Dispersion Technologies

2.1 Multi-stage Turbulent Dispersion

ZENITH’s XZM Ultrafine Mill implements patented three-zone dispersion:

Primary impact zone: Coarse particles reduced to 100-200μm
Shear dispersion zone: High-speed rotor-stator interaction at 25-40m/s
Nanoscale refinement zone: Precision classification down to 5μm (D97)

The XZM series achieves 30% energy savings compared to conventional jet mills while doubling throughput capacity. Its vertical turbine classifier ensures 99.7% of output meets target specifications.

2.2 Electrostatic Stabilization Integration

Our MTW Series Trapezium Mill incorporates:

Ionized air injection system (-5kV to +5kV adjustable)
Dielectric barrier discharge (DBD) surface treatment
Zeta potential monitoring feedback loop

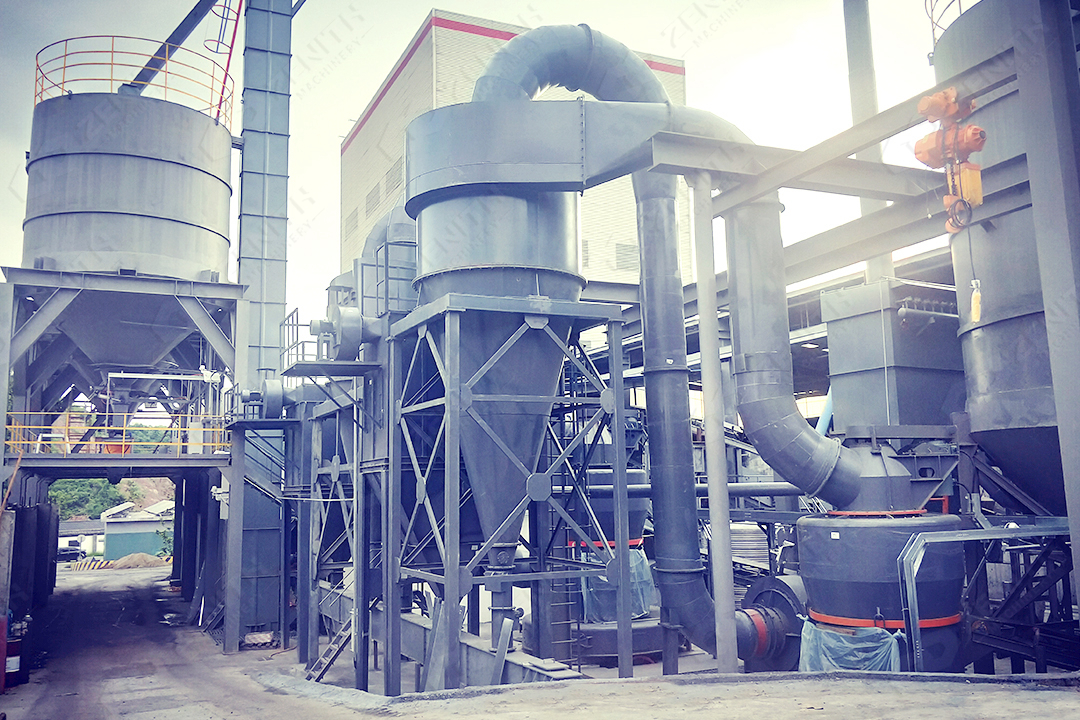

MTW Series Trapezium Mill with electrostatic dispersion system

3. ZENITH’s Technological Edge

With 30+ years in grinding technology development, ZENITH delivers:

Feature	XZM Ultrafine Mill	MTW Trapezium Mill
Energy Efficiency	0.8-1.2 kWh/kg (5μm)	1.2-1.8 kWh/kg (45μm)
Noise Level	≤75dB (with acoustic enclosure)	≤82dB
Maintenance Interval	800-1,200 operating hours	500-800 operating hours

4. Application Case Studies

Pharmaceutical Grade TiO₂ Production
Using XZM221 model (75kW):

Input: 20mm TiO₂ aggregates
Output: 4.5t/h at D50=1.2μm
BET surface area: 45±2 m²/g

Microscopy images showing nanoparticle dispersion quality

5. Future Development Directions

ZENITH’s R&D team is advancing:

AI-driven real-time dispersion optimization (patent pending)
Hybrid mechanical-plasma dispersion systems
Modular mill designs for flexible production lines

Our global service network ensures 24/7 technical support across 170+ countries, with field engineers available for onsite optimization within 72 hours.
