A Comprehensive Guide to Apatite Processing Equipment and Industrial Applications
Introduction to Apatite and Its Industrial Significance
Apatite, a group of phosphate minerals with the chemical formula Ca5(PO4)3(F,Cl,OH), represents the primary source of phosphorus worldwide. This crucial mineral serves as the backbone of the global fertilizer industry while finding diverse applications in chemical production, metallurgy, ceramics, and even biomedical fields. The processing of apatite ore into various usable forms requires sophisticated equipment capable of handling its specific physical and chemical characteristics, including moderate hardness (5 on Mohs scale), brittleness, and varying impurity content.
The industrial value chain of apatite extends from raw ore extraction through beneficiation to final product manufacturing. Each stage demands specialized processing equipment to optimize efficiency, product quality, and economic viability. This comprehensive guide examines the complete apatite processing workflow, with particular focus on the critical comminution and classification stages where advanced milling technology determines final product specifications and market value.
Apatite Processing Workflow: From Ore to Final Product
Primary Crushing and Beneficiation
Apatite processing begins with primary crushing of mined ore, typically reducing material from large lumps (up to 1 meter) to manageable sizes (under 50mm). Jaw crushers and gyratory crushers serve as the primary workhorses in this initial stage. Following primary crushing, apatite ore undergoes beneficiation to separate the valuable mineral from gangue materials. Flotation remains the most common beneficiation method, utilizing specific reagents that selectively separate apatite from associated minerals like calcite, silica, and iron oxides.
The efficiency of subsequent processing stages heavily depends on proper beneficiation, as impurities can significantly impact both equipment performance and final product quality. Modern beneficiation plants achieve apatite concentrates with P2O5 content exceeding 39%, creating an optimal feed material for further size reduction processes.
Intermediate Grinding and Classification
Following beneficiation, apatite concentrate requires intermediate grinding to achieve particle sizes suitable for final application requirements. This stage typically reduces material to coarse powder form (approximately 600-200μm or 30-80 mesh). Equipment selection at this phase balances processing capacity with energy efficiency, as intermediate grinding represents one of the most energy-intensive stages in mineral processing.
For medium-scale apatite processing operations requiring output in the 30-325 mesh range (600-45μm), the MTW Series Trapezium Mill offers an optimal solution. This advanced grinding system combines high throughput capacity (3-45 tons/hour depending on model) with exceptional energy efficiency. Its innovative curved air channel design minimizes pressure loss while the integral transmission with bevel gear achieves remarkable 98% transmission efficiency. The wear-resistant volute structure further enhances operational economy by reducing maintenance costs by approximately 30% compared to conventional mills.
The MTW Series employs a sophisticated grinding mechanism where the main motor drives the grinding roller to revolve around the central axis while rotating itself. The shovel blades feed material between the roller and grinding ring, creating a bed of particles that undergo compressive fracturing. An integrated classification system ensures precise control over final product fineness, making this equipment particularly suitable for producing apatite powders for fertilizer manufacturing and industrial chemical applications.
Fine and Ultrafine Grinding for Specialty Applications
Many high-value apatite applications demand significantly finer particle sizes than those achieved through intermediate grinding. The production of animal feed supplements, dental materials, ceramic glazes, and specialty chemicals often requires apatite powders with particle sizes ranging from 45μm down to 5μm (325-2500 mesh). Achieving these specifications necessitates specialized fine and ultrafine grinding equipment capable of generating controlled particle size distributions while minimizing contamination and thermal degradation.

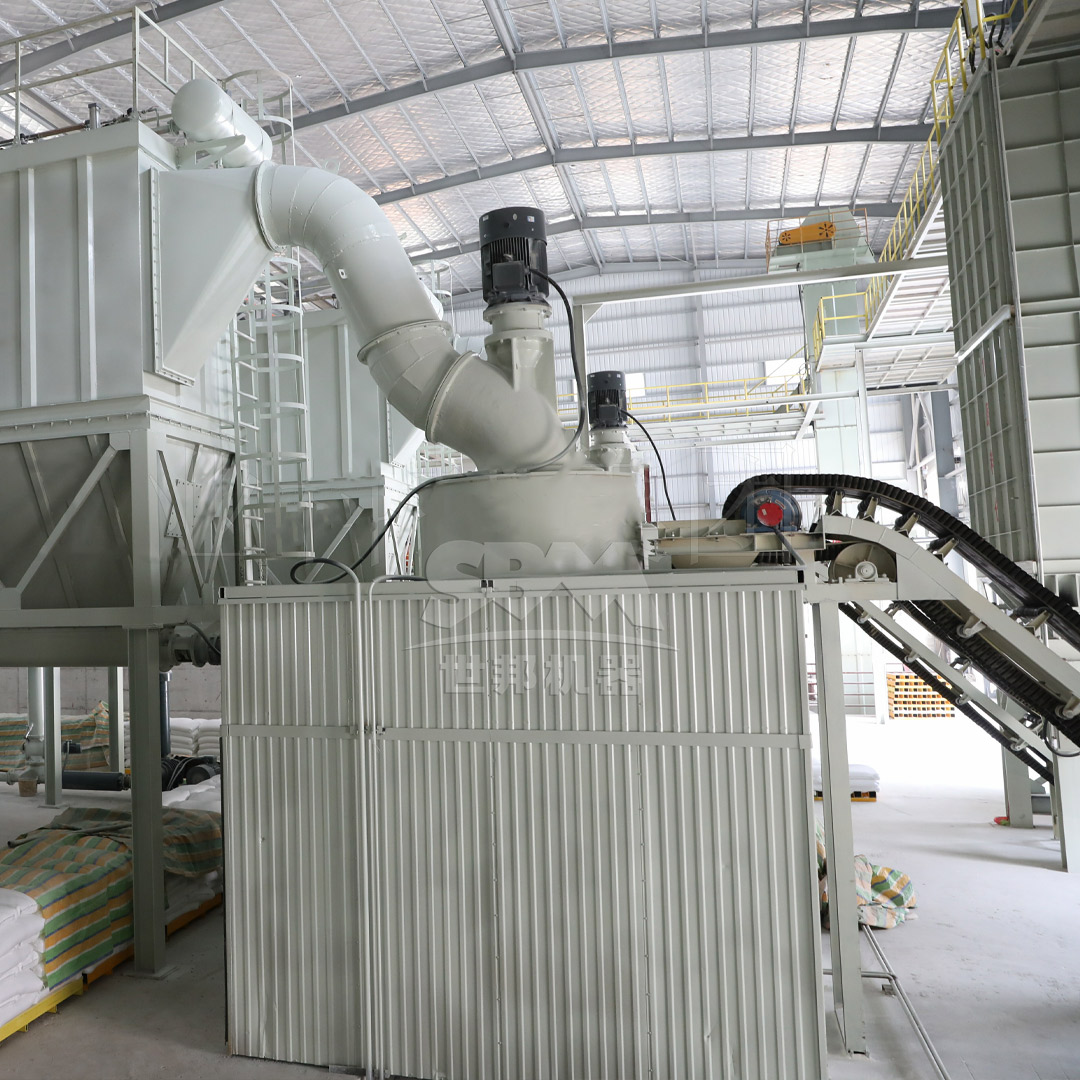

For ultrafine apatite powder production, the SCM Ultrafine Mill represents state-of-the-art technology in comminution equipment. This advanced mill system consistently produces powders with fineness ranging from 325 to 2500 mesh (D97 ≤ 5μm), meeting the most stringent specifications for high-value apatite applications. The mill’s vertical turbine classification system ensures precise particle size cuts without coarse powder contamination, guaranteeing exceptional product uniformity batch after batch.
The SCM Ultrafine Mill operates on a unique multi-layer grinding principle, where the main motor drives three layers of grinding rings to rotate. Material is dispersed into the grinding path by centrifugal force and undergoes progressive compression and shearing forces as it moves through each grinding stage. Special wear-resistant materials for rollers and grinding rings extend service life significantly, while the bearing-free screw grinding chamber ensures stable operation and minimal maintenance requirements. With capacities ranging from 0.5 to 25 tons/hour across different models, the SCM series offers scalable solutions for operations of varying sizes.
Key Equipment Selection Criteria for Apatite Processing
Technical Considerations
Selecting appropriate processing equipment for apatite requires careful evaluation of multiple technical factors. Feed characteristics, including moisture content, hardness, abrasiveness, and feed size distribution, significantly influence equipment selection and configuration. Different apatite deposits exhibit varying grindability, with Bond Work Index values typically ranging from 10-15 kWh/t, placing apatite in the medium-hardness category for milling operations.
Target product specifications represent another critical consideration. The required particle size distribution, specific surface area, and particle morphology dictate whether standard grinding equipment suffices or specialized mills are necessary. Applications requiring narrow particle size distributions benefit from mills with integrated high-efficiency classifiers, while products demanding specific particle shapes may require particular grinding mechanisms.
Economic and Operational Factors
Beyond technical specifications, economic considerations heavily influence equipment selection for apatite processing. Energy consumption represents the single largest operating cost in comminution, making equipment efficiency a paramount concern. Modern grinding systems can reduce specific energy consumption by 30-40% compared to conventional ball mills, significantly impacting operational economics.
Maintenance requirements, wear part lifetime, and operational reliability also factor into equipment selection decisions. Systems with quick-change components, automated lubrication, and remote monitoring capabilities minimize downtime and reduce labor costs. Additionally, environmental compliance, including dust emissions and noise levels, increasingly influences equipment selection as regulatory standards tighten globally.
Industrial Applications of Processed Apatite
Fertilizer and Agricultural Applications
Approximately 80% of global apatite production serves the fertilizer industry as the primary source of phosphorous. Processed apatite provides essential phosphorus nutrients that support root development, flowering, and fruiting in plants. For direct application, apatite requires grinding to specific fineness (typically 100-200 mesh) to ensure adequate nutrient release rates. More commonly, apatite serves as the raw material for water-soluble phosphate fertilizers like single superphosphate (SSP), triple superphosphate (TSP), and ammonium phosphates through chemical treatment processes.
The particle size distribution of ground apatite critically influences reaction kinetics in acidulation processes, making consistent grinding quality essential for optimal plant performance. Modern fertilizer plants increasingly demand apatite powders with tightly controlled particle size distributions to maximize P2O5 recovery while minimizing unreacted material and byproduct formation.
Industrial and Specialty Applications
Beyond fertilizers, apatite finds diverse applications across multiple industries. In the chemical industry, apatite serves as a source material for elemental phosphorus, phosphoric acid, and various phosphate salts. These applications often require very fine, high-purity apatite powders with carefully controlled impurity profiles.
The ceramics industry utilizes apatite as an opacifier and flux in glazes and enamels, where consistent particle size ensures uniform melting behavior and surface properties. In metallurgy, apatite functions as a fluxing agent in steel production and as a coating material for welding electrodes. Emerging applications include the production of hydroxyapatite for biomedical implants and dental materials, where ultra-high purity and nanometer-scale control over particle size are essential.
Future Trends in Apatite Processing Technology
The apatite processing industry continues to evolve in response to changing market demands and technological advancements. Several key trends are shaping equipment development and processing methodologies. There is growing emphasis on energy efficiency and sustainability, driving innovation in grinding technology, classifier design, and process optimization. Modern mills increasingly incorporate intelligent control systems that automatically adjust operational parameters in response to feed characteristics and product requirements.
Digitalization and Industry 4.0 concepts are transforming apatite processing operations through real-time monitoring, predictive maintenance, and automated optimization. Advanced sensor technology combined with machine learning algorithms enables mills to maintain optimal performance while minimizing operator intervention. Additionally, there is increasing focus on circular economy principles, with equipment designs that facilitate the processing of secondary phosphate sources alongside conventional apatite ores.
Conclusion
Apatite processing represents a sophisticated technological field where equipment selection directly impacts product quality, operational efficiency, and economic viability. From intermediate grinding with trapezium mills to ultrafine powder production with specialized milling systems, each processing stage requires equipment matched to specific technical requirements. The continuing evolution of grinding technology, particularly in classification efficiency, wear resistance, and energy optimization, enables processors to meet increasingly stringent product specifications while controlling operational costs.
As demand for phosphate-based products grows across agricultural, industrial, and specialty sectors, the importance of advanced processing equipment will only increase. Manufacturers who invest in modern, efficient grinding technology position themselves to capitalize on emerging market opportunities while maintaining competitiveness through operational excellence and product quality.
