2000kW Large Vertical Roller Mill Power Configuration and Energy Efficiency Analysis
In modern mineral processing and cement production, vertical roller mills (VRMs) have become essential equipment for grinding raw materials, coal, and cement clinker. This article focuses on the power configuration and energy efficiency analysis of large-scale VRMs with 2000kW power capacity, incorporating technological insights from ZENITH’s industrial expertise.
1. Power System Configuration
1.1 Main Drive System
The 2000kW VRM requires a robust drive system featuring:
- High-torque synchronous motor (2000kW, 6-10kV)
- Planetary gear reducer with ≥96% transmission efficiency
- Hydraulic pressure system (working pressure 10-16MPa)
1.2 Auxiliary Power Components
| Component | Power Range |
|---|---|
| Classifier motor | 55-110kW |
| Main fan motor | 315-500kW |
| Lubrication system | 7.5-15kW |
2. Energy Efficiency Optimization
2.1 Key Efficiency Indicators
For 2000kW VRMs operating at full capacity:
- Specific power consumption: 14-18kWh/t (cement raw meal)
- Thermal energy recovery: Up to 30% from exhaust gases
2.2 ZENITH’s Technological Solutions
Our LM280N Vertical Slag Mill exemplifies advanced efficiency features:
- Integrated dynamic classifier reduces recirculation by 40%
- Patented grinding roller profile increases material bed stability
- Total system power consumption optimized at 1950kW for 110t/h output
3. Comparative Analysis
When evaluating 2000kW-class VRMs, ZENITH’s LM220X-GX Vertical Fine-powder Mill demonstrates superior performance:
| Parameter | Conventional VRM | LM220X-GX |
|---|---|---|
| Power consumption | 22kWh/t | 18.5kWh/t |
| Maintenance interval | 4000h | 6000h |
| Noise level | 85dB | 78dB |

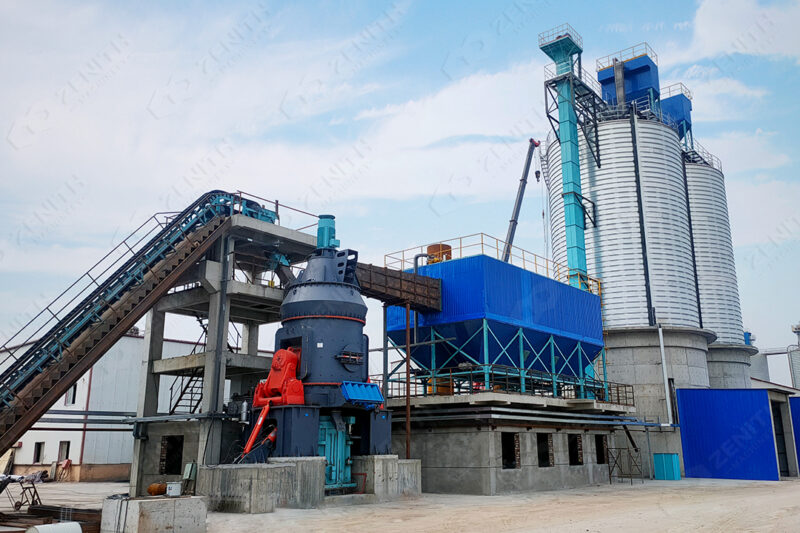

4. Case Study: 2000kW VRM in Cement Plant
A Southeast Asian cement plant achieved 23% energy reduction after replacing ball mills with ZENITH’s VRM system:
- Annual power savings: 8.7 million kWh
- Production increase from 65t/h to 90t/h
- ROI period: 2.8 years
5. Future Development Trends
Emerging technologies for 2000kW+ VRMs include:
- AI-powered predictive maintenance systems
- Hybrid drive systems with energy storage
- Advanced material science for wear parts
The optimization of 2000kW vertical roller mills requires balanced consideration of power configuration, operational parameters, and advanced grinding technology. ZENITH’s VRM solutions, developed through 30 years of engineering expertise, provide reliable high-efficiency options for large-scale grinding applications across multiple industries.
