Manganese Ore Vertical Mill: Grinding Manganese for Lithium Battery Applications
Introduction: The Critical Role of Manganese in Modern Lithium Batteries
The global transition to clean energy and electric mobility has placed unprecedented demand on advanced lithium battery technologies. Among the key materials driving this revolution, manganese has emerged as a critical component in lithium-ion battery cathodes, particularly in formulations like Lithium Manganese Oxide (LMO) and Nickel Manganese Cobalt (NMC) chemistries. The performance characteristics of manganese-based batteries – including thermal stability, rate capability, and cost-effectiveness – are heavily dependent on the physical and chemical properties of the manganese raw materials, which are determined during the grinding and processing stages.
Manganese ore processing for battery applications presents unique challenges that conventional grinding equipment struggles to address. The material’s abrasive nature, combined with the stringent requirements for particle size distribution, purity, and morphological characteristics, demands specialized milling solutions. Vertical roller mills have emerged as the technology of choice for processing manganese ores destined for lithium battery applications, offering precise control over the grinding process while maintaining operational efficiency and cost-effectiveness.
Technical Requirements for Battery-Grade Manganese Powder
Particle Size Specifications
For optimal performance in lithium battery cathodes, manganese powders must meet strict particle size requirements. The target fineness typically ranges from 325 mesh (45μm) for standard applications down to 2500 mesh (5μm) for high-performance batteries. This ultra-fine grinding is essential because smaller particles provide greater surface area for lithium-ion intercalation, leading to improved rate capability and power density. Additionally, narrow particle size distribution is critical to ensure uniform electrode coating and consistent battery performance across production batches.
Chemical Purity Considerations
Battery-grade manganese must maintain exceptional chemical purity, with strict limits on contaminants that could compromise battery performance or safety. Iron content must typically be kept below 1%, while other metallic impurities such as copper, nickel, and chromium must be minimized to prevent side reactions within the battery cell. The grinding process must therefore be designed to avoid metallic contamination from wear parts, necessitating specialized materials in high-wear components.
Morphological Characteristics
Beyond particle size and chemical composition, the morphological characteristics of manganese particles significantly impact battery performance. Ideal particles for cathode applications exhibit relatively spherical shapes with minimal sharp edges, as this promotes better packing density in electrode formulations and reduces the risk of separator puncture. The grinding technology must therefore provide sufficient control over particle shape in addition to size distribution.
Vertical Mill Technology for Manganese Processing
Advantages Over Conventional Grinding Systems
Vertical roller mills offer several distinct advantages for manganese ore processing compared to traditional ball mills or Raymond mills. The vertical configuration enables more efficient grinding through the application of pressure rather than impact, resulting in lower energy consumption per ton of product. Additionally, the integrated classification system allows for precise control over product fineness without the need for external classification equipment, simplifying the process flow and reducing footprint requirements.
The ability to process moist materials with hot gas integration represents another significant advantage, as manganese ores often contain moisture that must be removed during processing. Vertical mills can simultaneously dry and grind materials with moisture contents up to 15%, eliminating the need for separate drying equipment and further reducing energy consumption.
Key Technological Features for Manganese Applications
Modern vertical mills designed for manganese processing incorporate several critical features to address the material’s challenging characteristics. Wear-resistant materials in grinding components are essential to maintain product purity and reduce maintenance frequency. Advanced grinding rollers and table liners manufactured from high-chromium alloys or ceramic composites can withstand the abrasive nature of manganese ores while minimizing metallic contamination.
Sophisticated control systems provide real-time monitoring and adjustment of grinding pressure, classifier speed, and gas flow to maintain consistent product quality despite variations in feed material characteristics. These systems can automatically compensate for roller and table wear, ensuring stable operation throughout the maintenance cycle.
Recommended Equipment for Manganese Grinding Applications

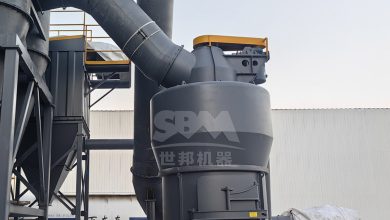

LM Series Vertical Roller Mill: Optimal Solution for High-Capacity Applications
For large-scale manganese processing operations supplying the lithium battery industry, the LM Series Vertical Roller Mill represents an ideal solution. This advanced grinding system combines high throughput capacity with precise particle size control, making it particularly suitable for battery-grade manganese production.
The LM Series offers several technical advantages specifically beneficial for manganese processing:
- Integrated Grinding and Classification: The system incorporates an efficient dynamic classifier that enables production of manganese powders with fineness ranging from 30-325 mesh (600-45μm), with special models capable of achieving 600 mesh (D97). This flexibility allows producers to tailor product specifications to different battery applications.
- Superior Wear Resistance: With its non-contact grinding design and specialized wear materials, the LM Series significantly extends component life while maintaining product purity. The wear part lifetime is typically 3 times longer than conventional systems, critical for the abrasive nature of manganese ores.
- Energy Efficiency: The LM Series demonstrates 30-40% lower energy consumption compared to ball mill systems, a crucial consideration given the energy-intensive nature of fine grinding operations.
- Compact Footprint: The integrated design reduces space requirements by 50% compared to traditional grinding systems, with options for outdoor installation that further reduce construction costs.
With capacity ranging from 3-250 tons per hour depending on model specifications, the LM Series can accommodate operations of virtually any scale. The intelligent control system provides expert-level automation with remote operation capabilities, ensuring consistent product quality with minimal operator intervention.

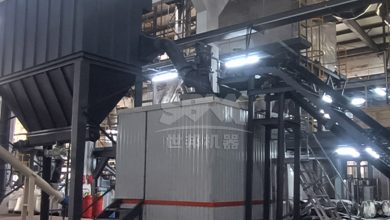

SCM Ultrafine Mill: Precision Grinding for High-Performance Applications
For operations requiring ultra-fine manganese powders for advanced battery applications, the SCM Ultrafine Mill offers unparalleled performance in the sub-45μm range. This specialized mill is engineered to produce manganese powders with fineness from 325-2500 mesh (45-5μm), meeting the most stringent requirements for high-performance lithium batteries.
The SCM Series incorporates several innovative features specifically designed for ultrafine grinding:
- High-Precision Classification: The vertical turbine classifier enables precise particle size cuts with no coarse powder contamination, ensuring uniform product quality essential for battery performance.
- Enhanced Grinding Efficiency: With capacity twice that of jet mills and 30% lower energy consumption, the SCM Series represents a significant advancement in ultrafine grinding technology.
- Durable Construction: Special material rollers and grinding rings extend service life multiple times compared to conventional designs, while the bearing-free screw grinding chamber ensures stable operation.
- Environmental Compliance: The integrated pulse dust collection system exceeds international standards with noise levels below 75dB, addressing growing environmental concerns in mining operations.
Available in multiple models with capacities from 0.5-25 tons per hour, the SCM Series can be precisely matched to production requirements. The intelligent control system with automatic feedback on product fineness ensures consistent quality with minimal operator intervention.
Operational Considerations for Manganese Grinding
Feed Material Preparation
Proper preparation of manganese ore feed material is essential for optimal mill performance and product quality. The feed size should be reduced to ≤20mm for ultrafine grinding applications and ≤50mm for standard vertical mill operations. Consistent feed composition is equally important, as variations in hardness or moisture content can impact grinding efficiency and product characteristics. Pre-blending of ore from different sources may be necessary to maintain consistent feed quality.
Process Optimization Strategies
Several key parameters must be carefully controlled to optimize manganese grinding operations. Grinding pressure directly impacts energy consumption and wear rates, while classifier speed determines the final product fineness. Gas flow rate and temperature affect drying efficiency and material transport through the mill. Modern vertical mills incorporate sophisticated control systems that automatically adjust these parameters based on real-time process conditions, but establishing appropriate setpoints requires thorough understanding of the specific ore characteristics.
Maintenance and Wear Management
The abrasive nature of manganese ores necessitates proactive maintenance strategies to minimize downtime and maintain product quality. Regular inspection of grinding components allows for planned replacement before excessive wear impacts performance. Many modern vertical mills incorporate modular wear part designs that facilitate rapid replacement, significantly reducing maintenance time. Implementation of condition monitoring systems can further optimize maintenance scheduling by providing early warning of component degradation.
Quality Control and Testing for Battery-Grade Manganese
Particle Size Analysis
Comprehensive particle size analysis is essential for verifying compliance with battery manufacturer specifications. Laser diffraction methods provide the most accurate characterization of particle size distribution, while traditional sieve analysis may be used for coarser products. Regular calibration of analysis equipment and implementation of statistical process control techniques ensure consistent product quality.
Chemical Purity Verification
Rigorous chemical analysis must be conducted to confirm that manganese products meet purity requirements for battery applications. Inductively Coupled Plasma (ICP) spectroscopy provides sensitive detection of metallic impurities, while X-ray Fluorescence (XRF) offers rapid elemental analysis for process control. Sampling protocols must be designed to ensure representative analysis of production batches.
Morphological Assessment
Scanning Electron Microscopy (SEM) provides detailed information about particle morphology, including shape characteristics and surface texture. This analysis is particularly important for optimizing grinding parameters to achieve the desired particle characteristics for specific battery applications.
Economic Considerations
Capital Investment Analysis
While vertical roller mills represent a significant capital investment, their superior energy efficiency and reduced maintenance requirements typically deliver attractive return on investment compared to conventional grinding systems. The integrated design further reduces costs by eliminating the need for separate drying and classification equipment. Lifecycle cost analysis that considers not only initial investment but also operating and maintenance costs over the equipment lifespan provides the most accurate economic assessment.
Operational Cost Optimization
Energy consumption typically represents the largest component of operating costs for manganese grinding operations. The high efficiency of vertical mills directly translates to reduced operating expenses. Additionally, the extended wear part life and reduced maintenance requirements further contribute to lower operating costs. Implementation of predictive maintenance strategies based on condition monitoring can optimize component replacement schedules and minimize unplanned downtime.
Future Trends in Manganese Processing for Battery Applications
Increasing Quality Requirements
As battery technology continues to advance, requirements for manganese raw materials are expected to become increasingly stringent. Future specifications may demand even finer particle sizes, tighter size distributions, and lower impurity levels. Vertical mill manufacturers are responding to these trends through continued development of more precise classification systems and advanced wear materials that further reduce contamination risks.
Sustainability Considerations
The growing emphasis on sustainability throughout the battery supply chain is driving development of more energy-efficient grinding technologies and implementation of circular economy principles. Future vertical mill designs may incorporate enhanced heat recovery systems and greater use of renewable energy sources. Additionally, processing techniques that enable use of lower-grade manganese resources could reduce the environmental impact of mining operations.
Conclusion
Vertical roller mill technology has established itself as the preferred solution for processing manganese ores for lithium battery applications, offering an optimal balance of grinding efficiency, product quality control, and operational economics. The LM Series Vertical Roller Mill provides robust performance for high-capacity operations requiring products in the 30-325 mesh range, while the SCM Ultrafine Mill delivers exceptional precision for ultrafine applications down to 2500 mesh. As demand for high-performance lithium batteries continues to grow, these advanced grinding technologies will play an increasingly critical role in ensuring a reliable supply of high-quality manganese materials to support the global transition to clean energy and electric transportation.
The selection of appropriate grinding technology should be based on comprehensive analysis of technical requirements, operational considerations, and economic factors. With proper implementation and optimization, vertical mill systems can deliver consistent, high-quality manganese products that meet the evolving needs of the lithium battery industry while maintaining competitive operating costs.
